Restoring Old Metal
About Pillar Roofing

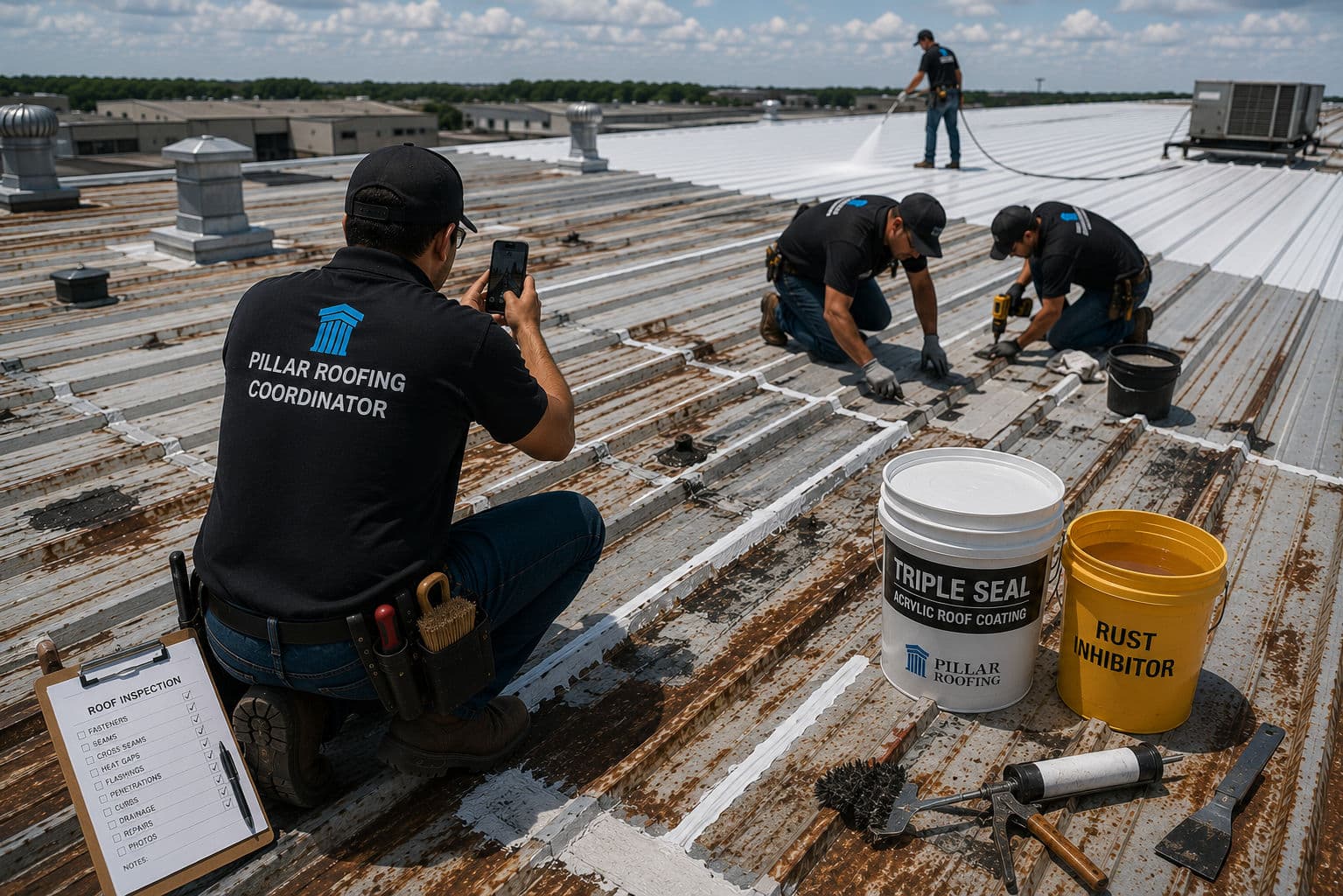

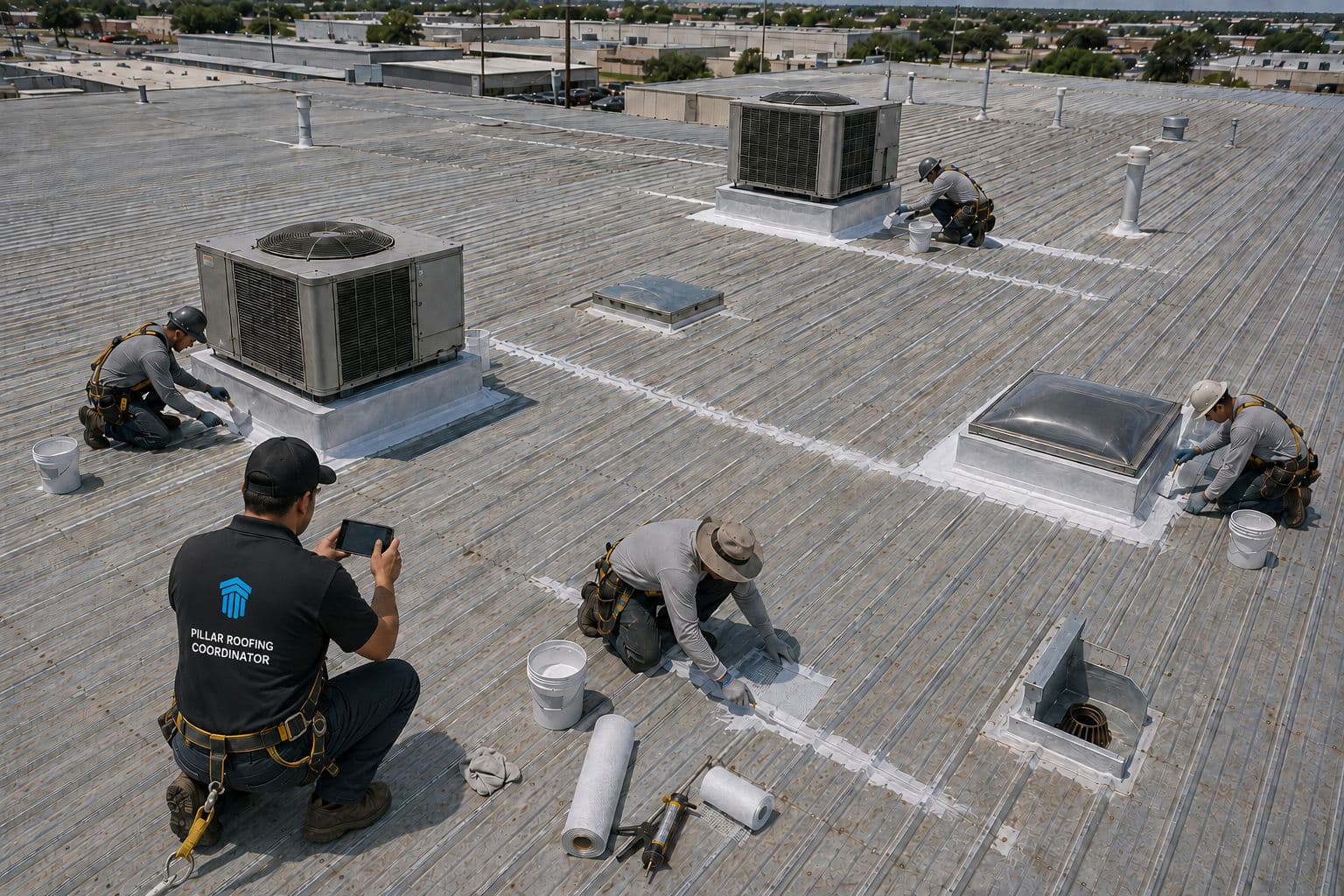

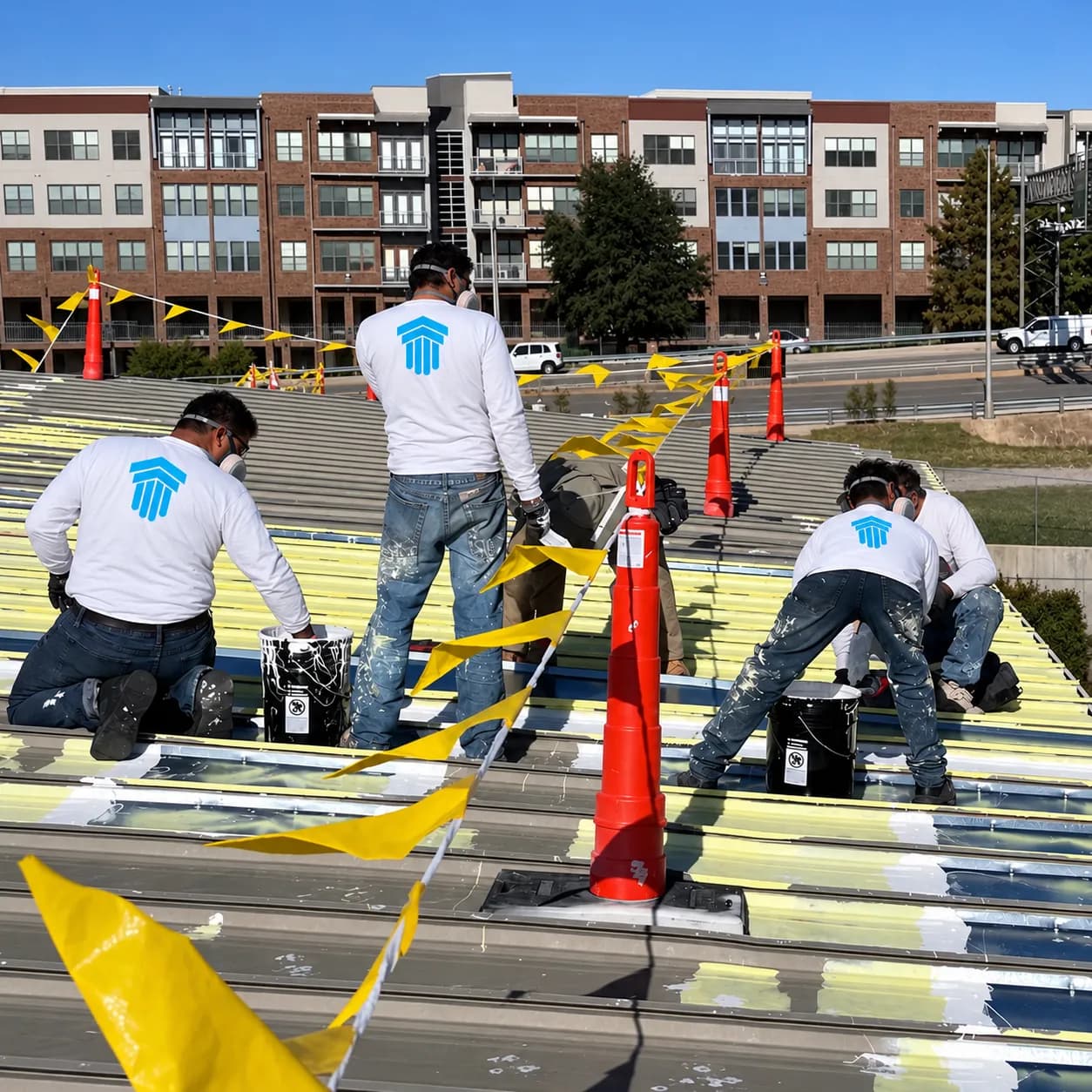

Triple-Sealed the Details

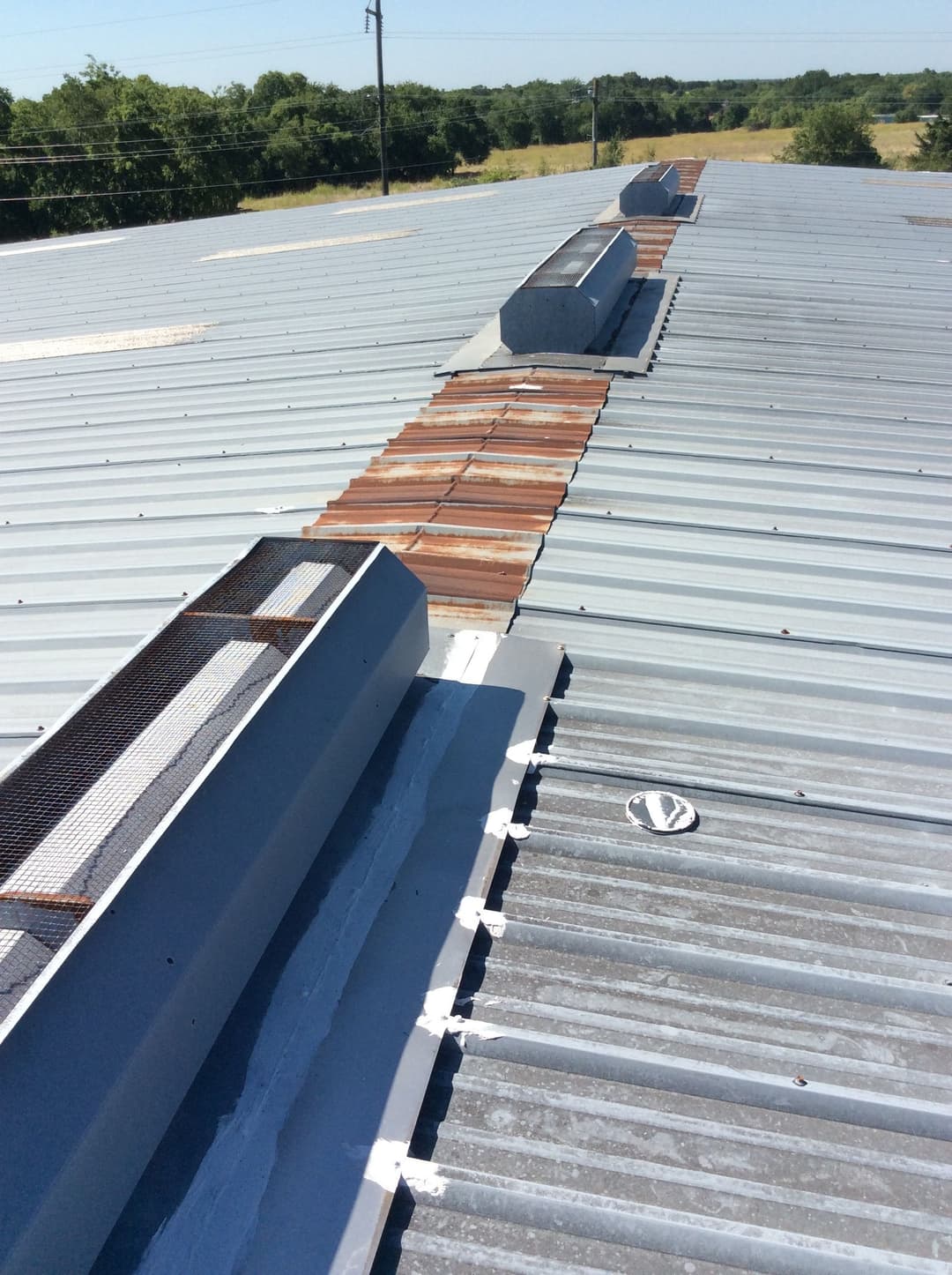

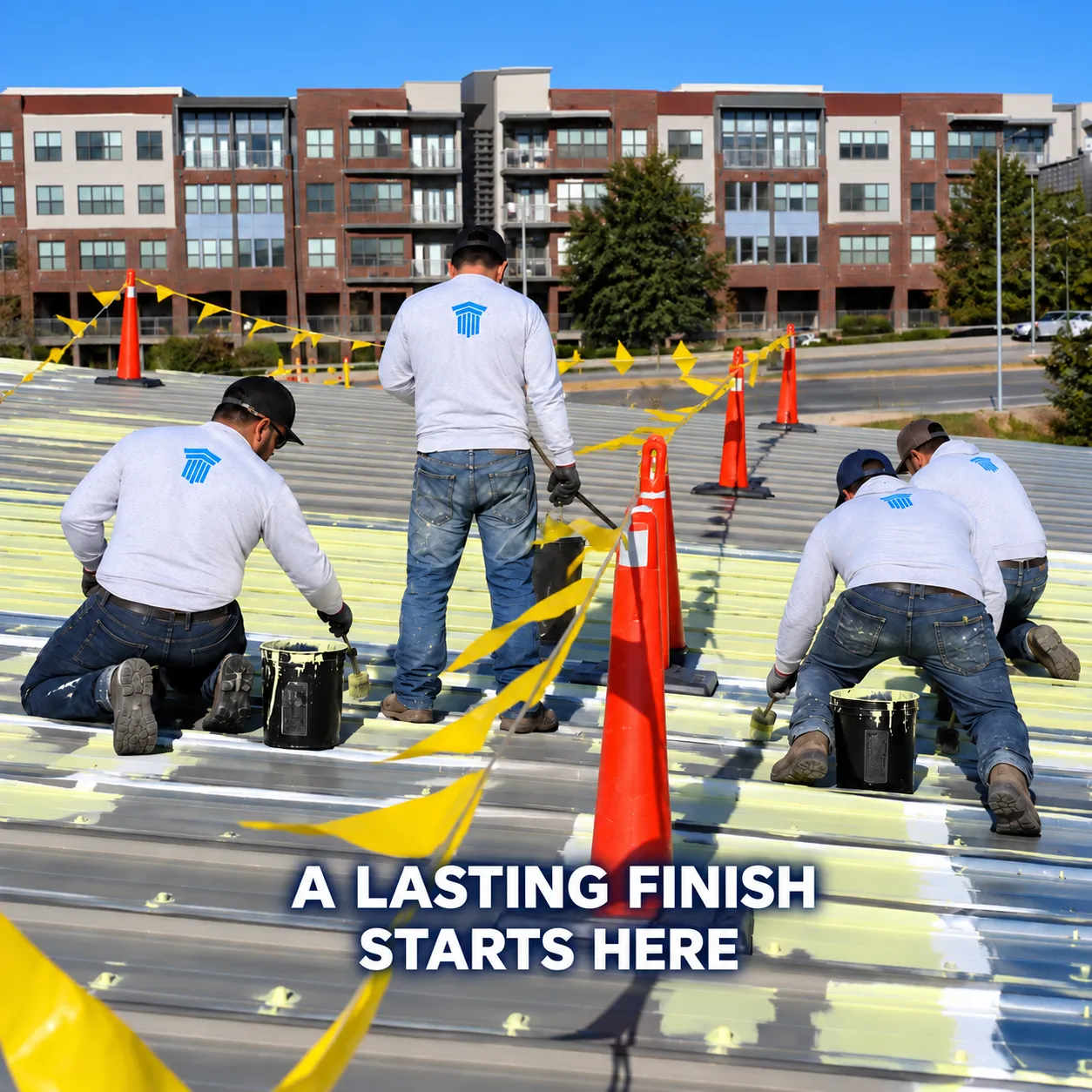

Before spraying the final roof coating, we prepare and reinforce every vulnerable detail. Areas showing corrosion receive rust inhibitor to stabilize the metal and stop deterioration from continuing beneath the new system. We then triple-seal around every turbine, HVAC curb, penetration, transition, and other roof fixture, carrying the reinforced coating completely around each base to create a continuous watertight barrier.
Every exposed hex-head screw is also inspected and individually covered with a white “Hershey Kiss” of coating. These seals protect the screw heads and aging neoprene washers from further weather exposure while closing thousands of potential water-entry points across the roof.
Only after the rust, hardware, seams, and fixtures have been thoroughly prepared do we apply the full spray coating. That careful sequence is what turns an aging metal-panel roof into a complete restoration system—not merely a fresh coat of paint.
About Pillar Roofing

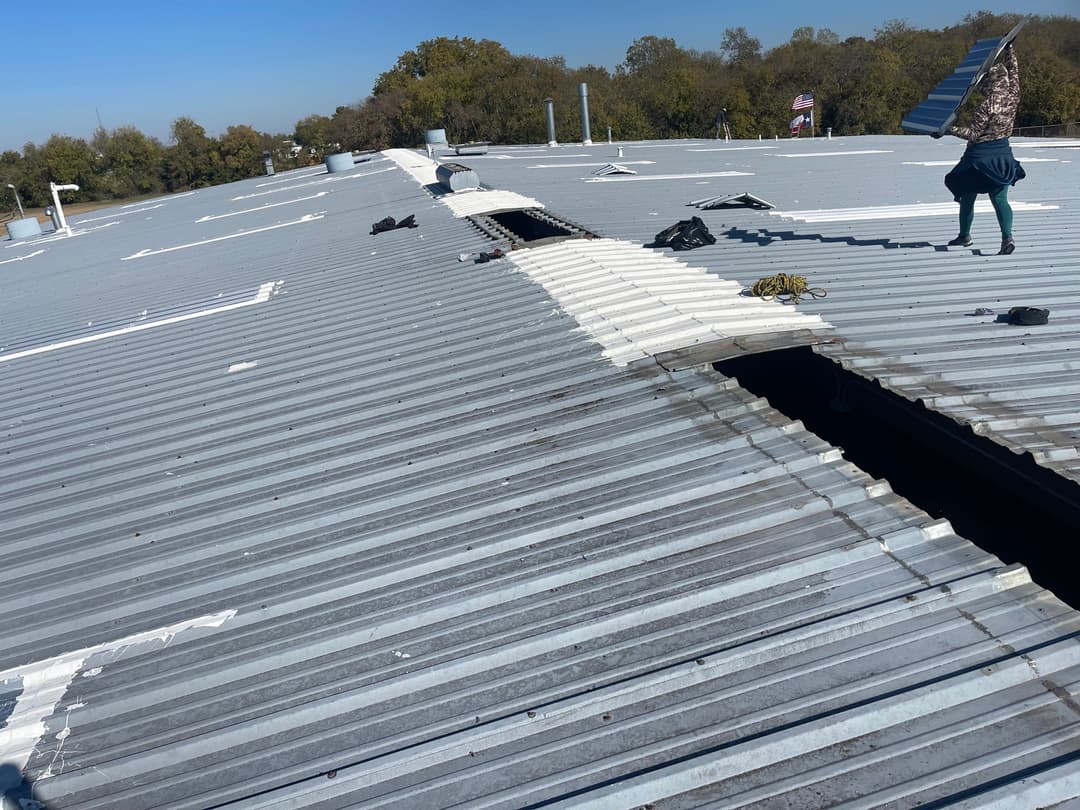

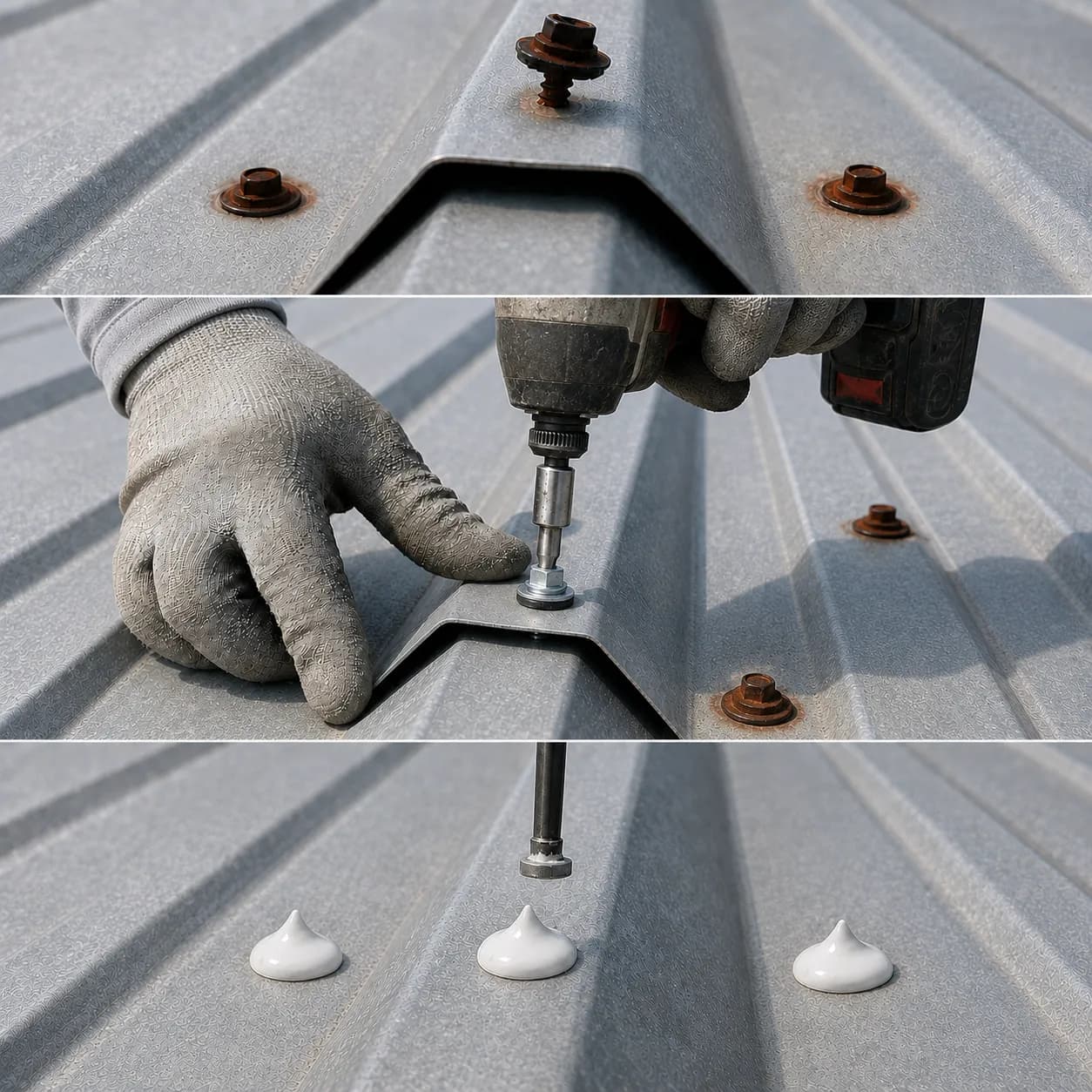

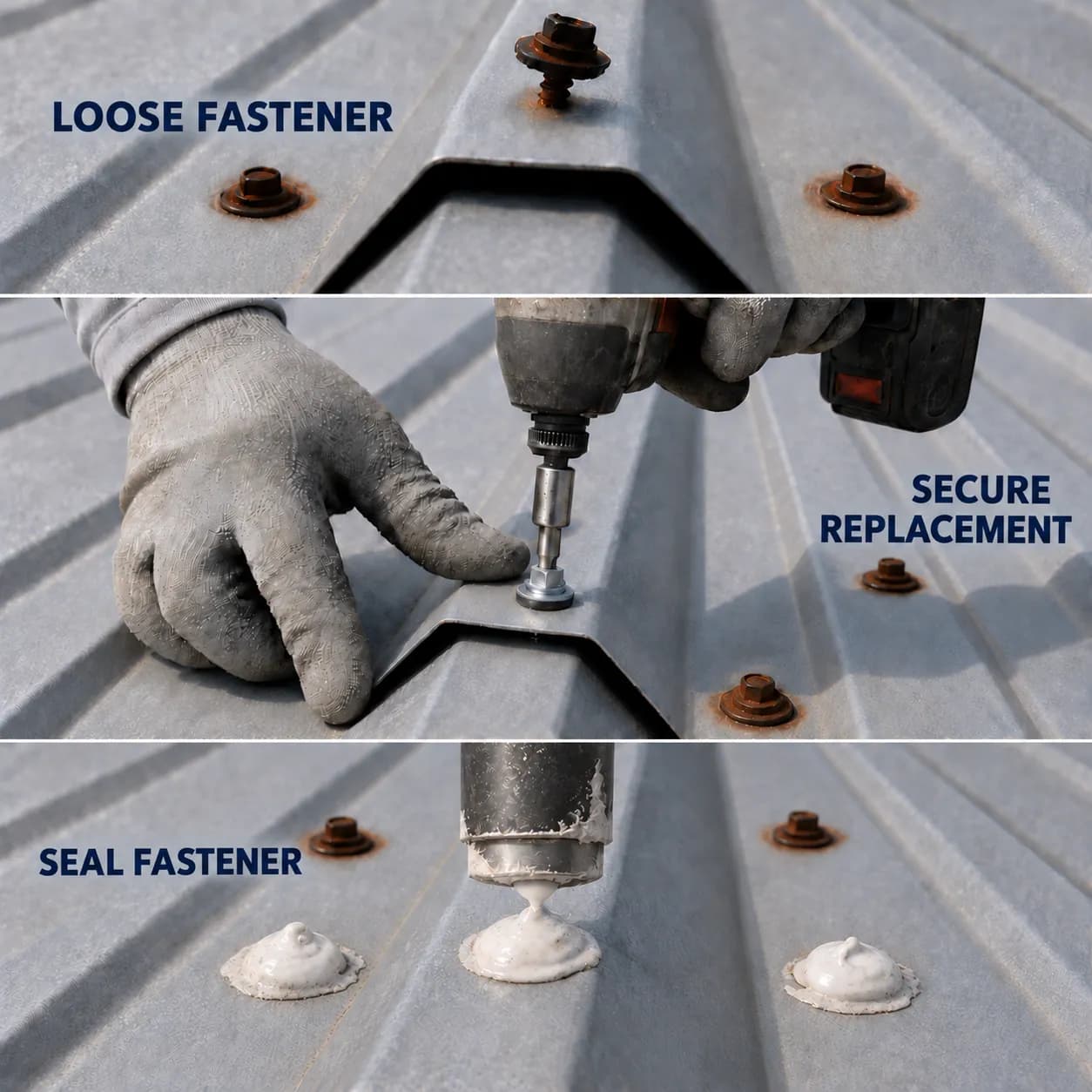

Tighten Up Panel Integrity
Years of relentless Texas sun and extreme temperature swings cause metal roof panels to expand and contract, gradually working exposed fasteners loose while their neoprene sealing washers dry out, crack, and eventually crumble.
Our hardware restoration follows a careful one-two-three process: First, we locate every rusted, backed-out, or failed fastener and the heat gaps it has created. Second, loose or ineffective screws are removed and replaced with larger-diameter fasteners and fresh bonded washers, pulling the panel tight again and restoring a secure mechanical connection. Finally, every sound fastener—whether newly installed, already tight, or simply showing surface rust—is encapsulated with a precise white “Hershey Kiss” of protective coating.
This final seal keeps moisture away from the screw and washer, protects the connection from further weathering, and prepares the roof for the complete restoration system that follows.
About Pillar Roofing

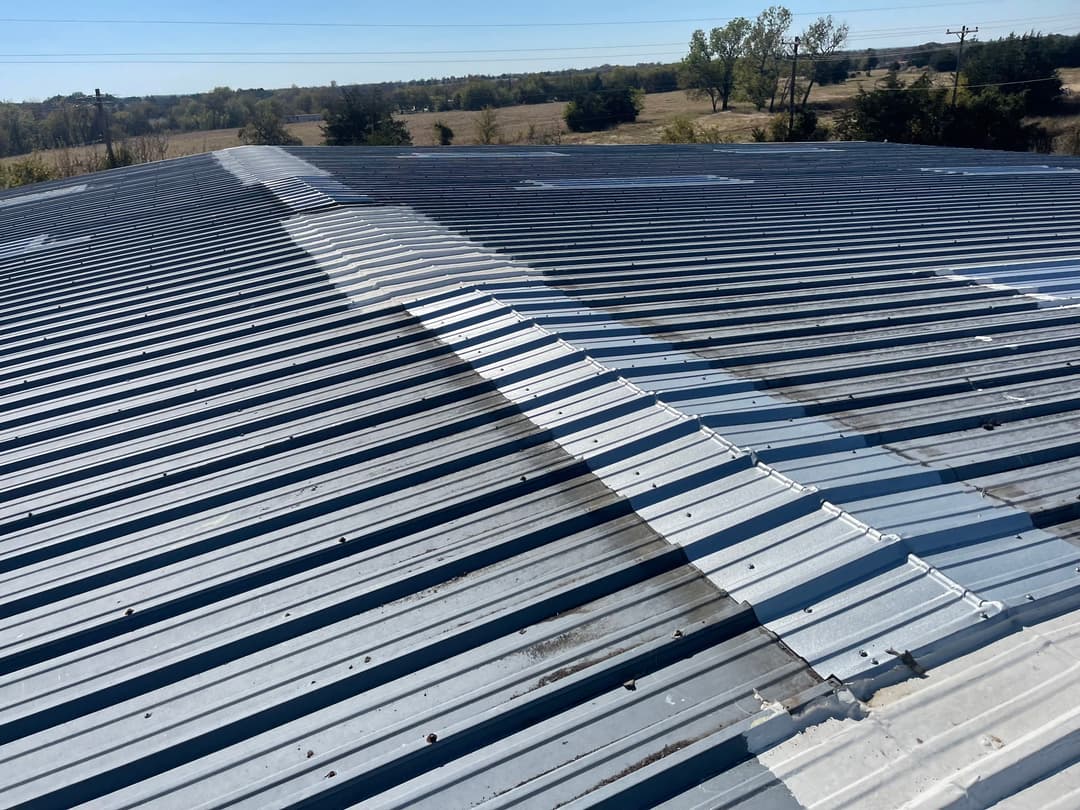

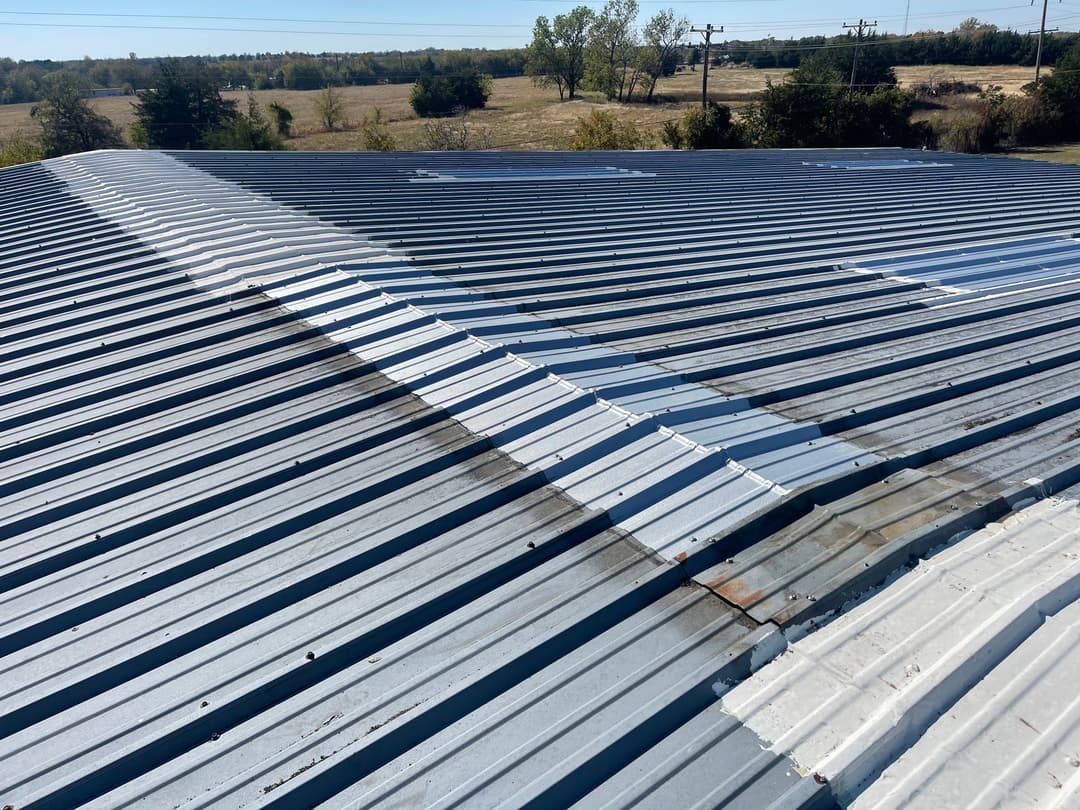

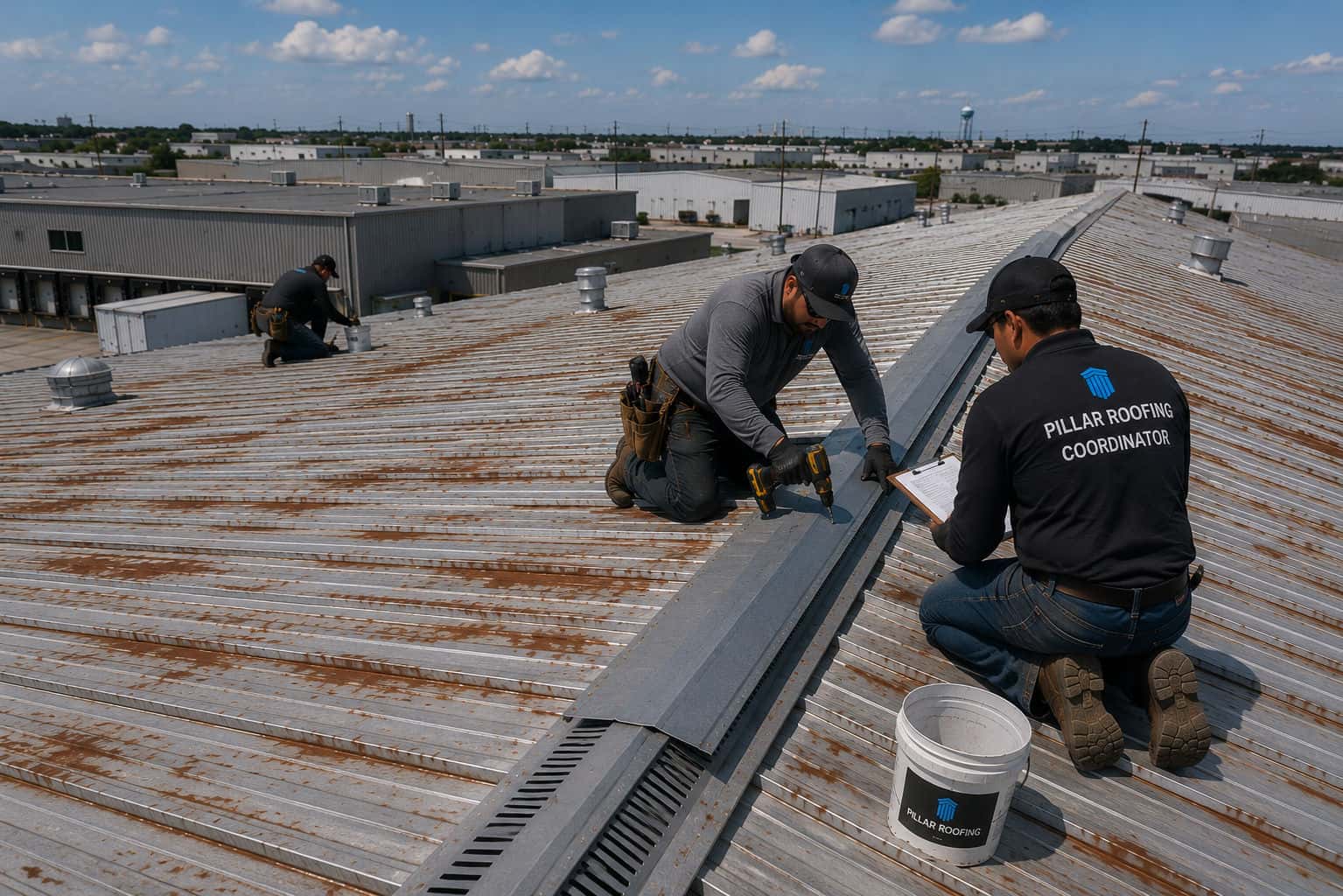

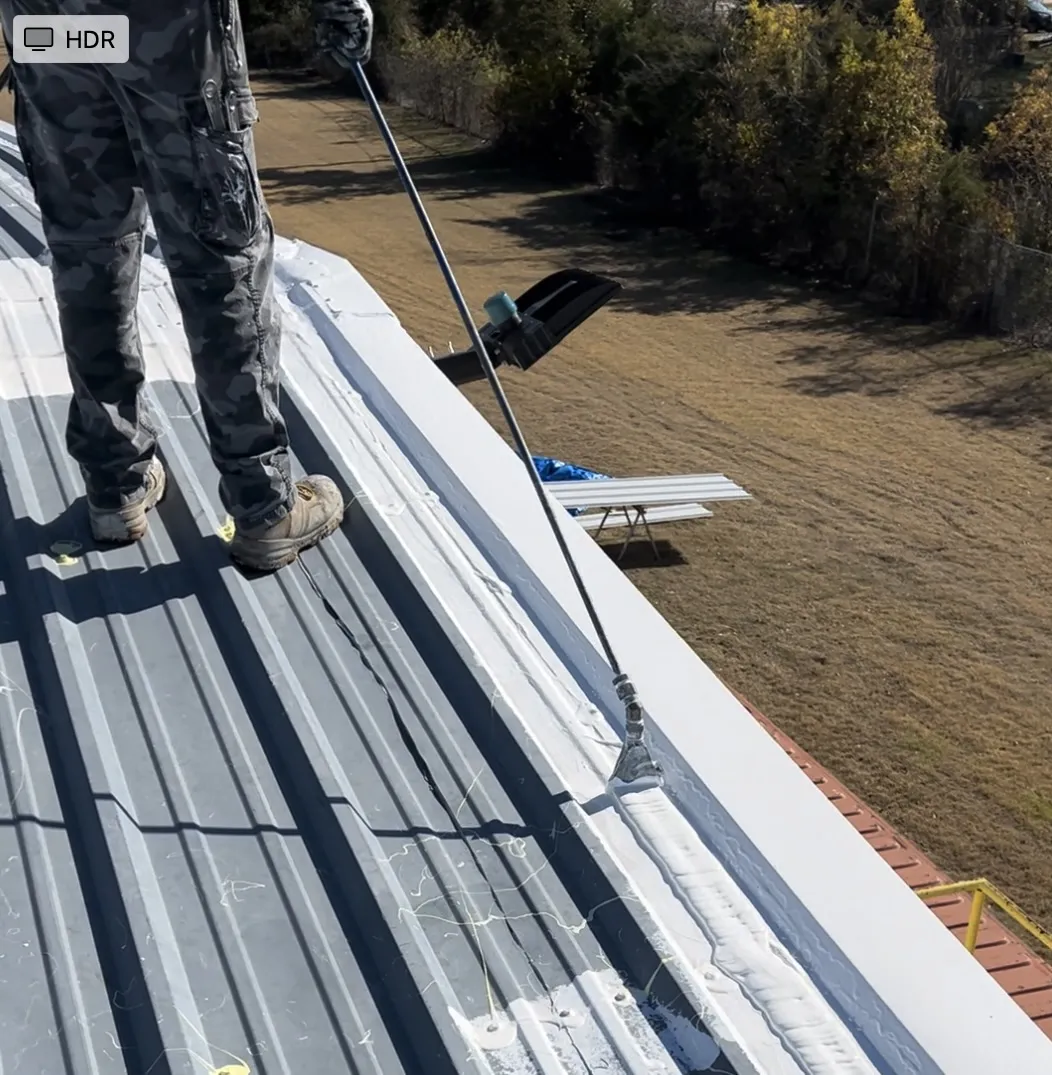

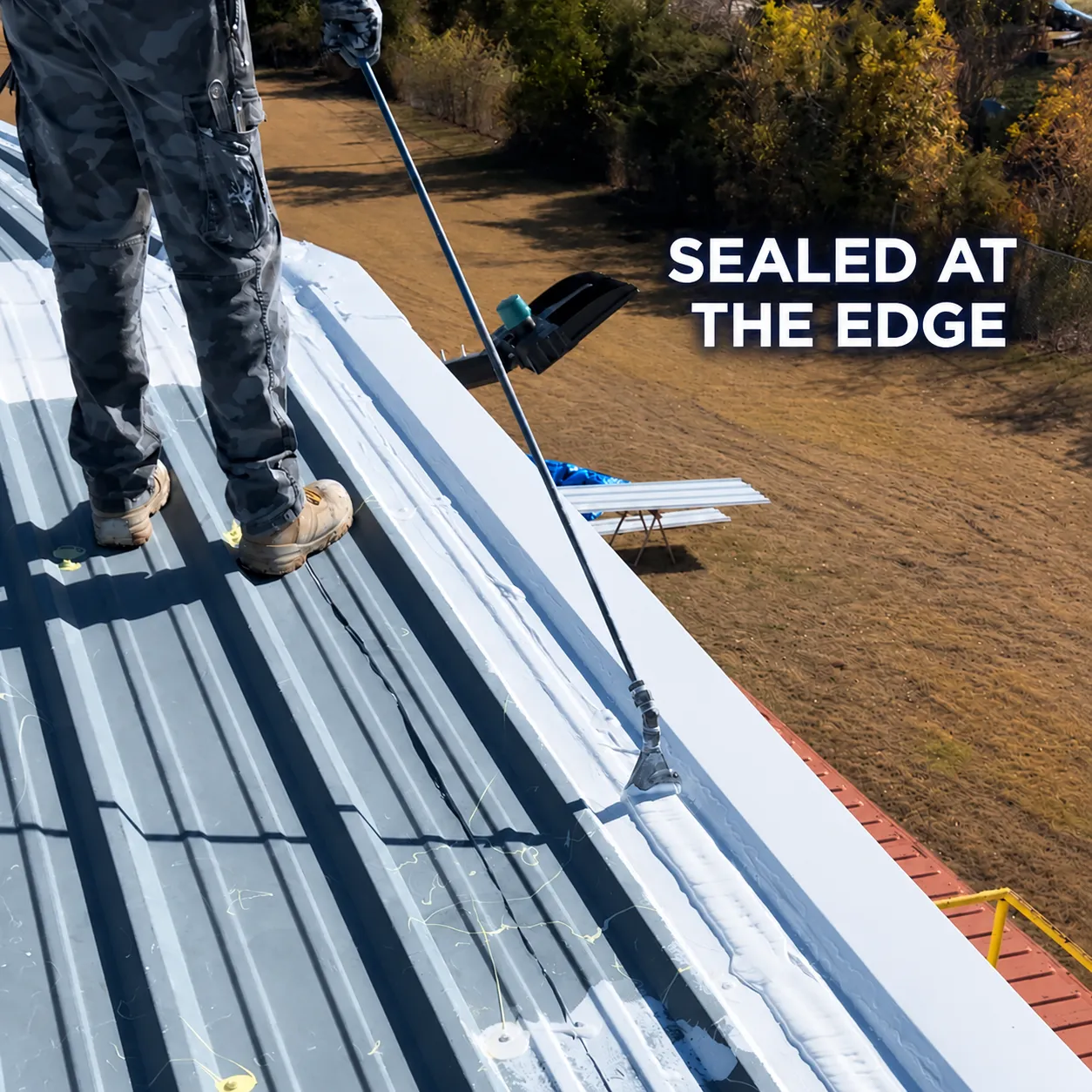

The Rakes & Seams Sealer
The rake edges & seams of an R-panel roof take some of the hardest punishment from wind-driven rain, thermal movement, and uplift, which is why leaks often appear there first.
Our repair process includes tightening or replacing loose fasteners, correcting separated rake trim and closure details, and applying seam sealer down the overlaps. Properly sealing these rake-end details & seam overlaps is critical because once water gets behind the trim, it can travel beneath the panels and cause damage far beyond the original entry point.
About Pillar Roofing

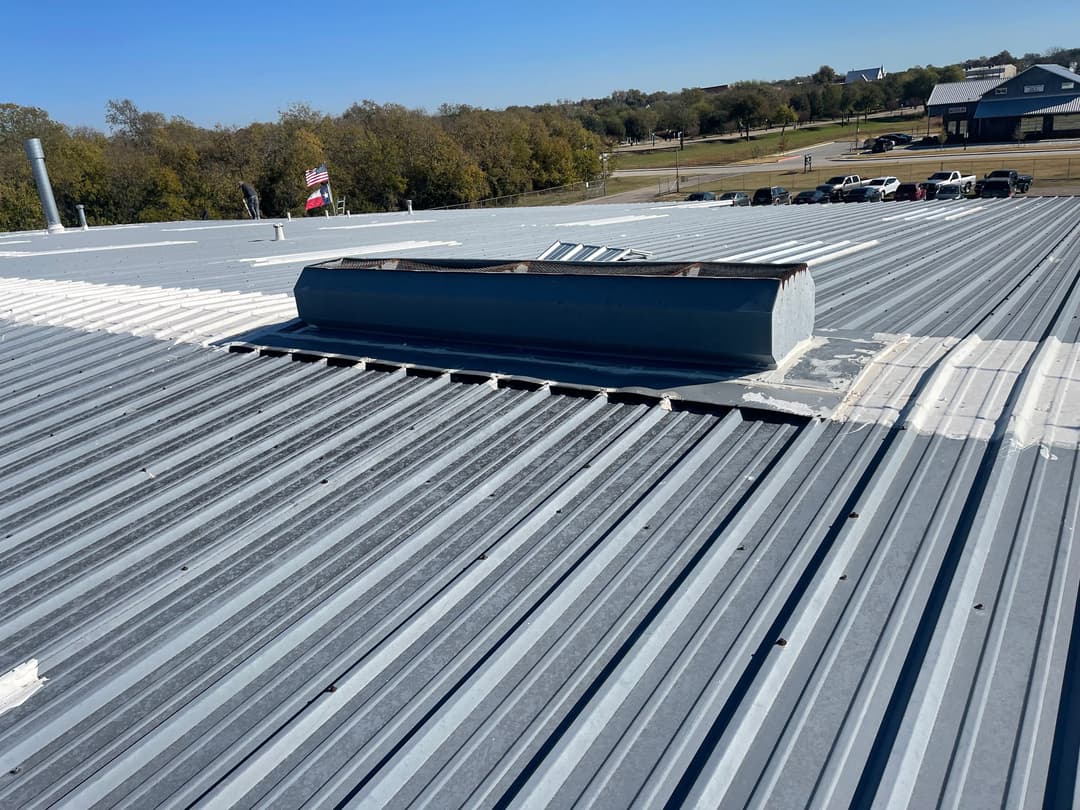

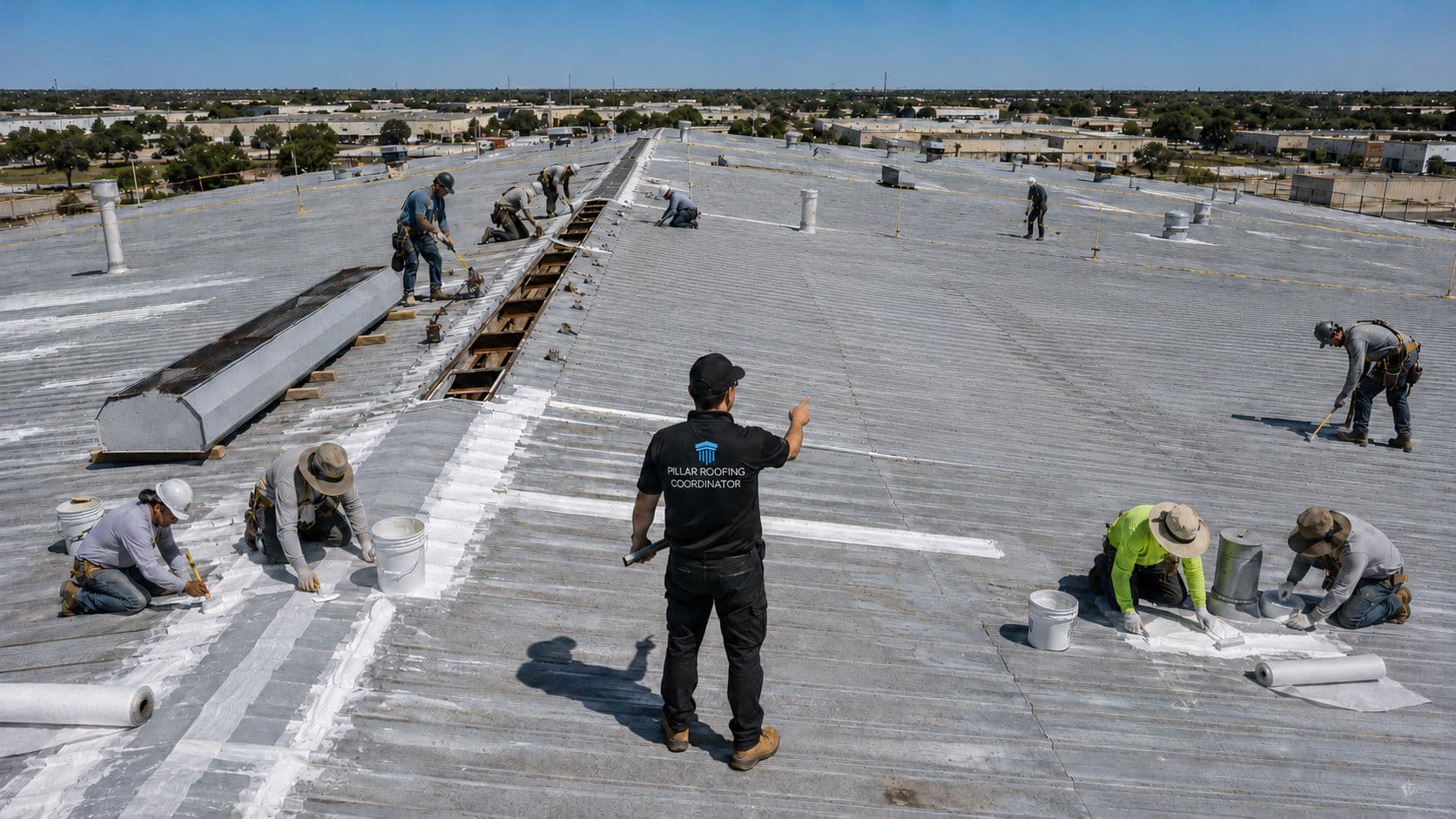

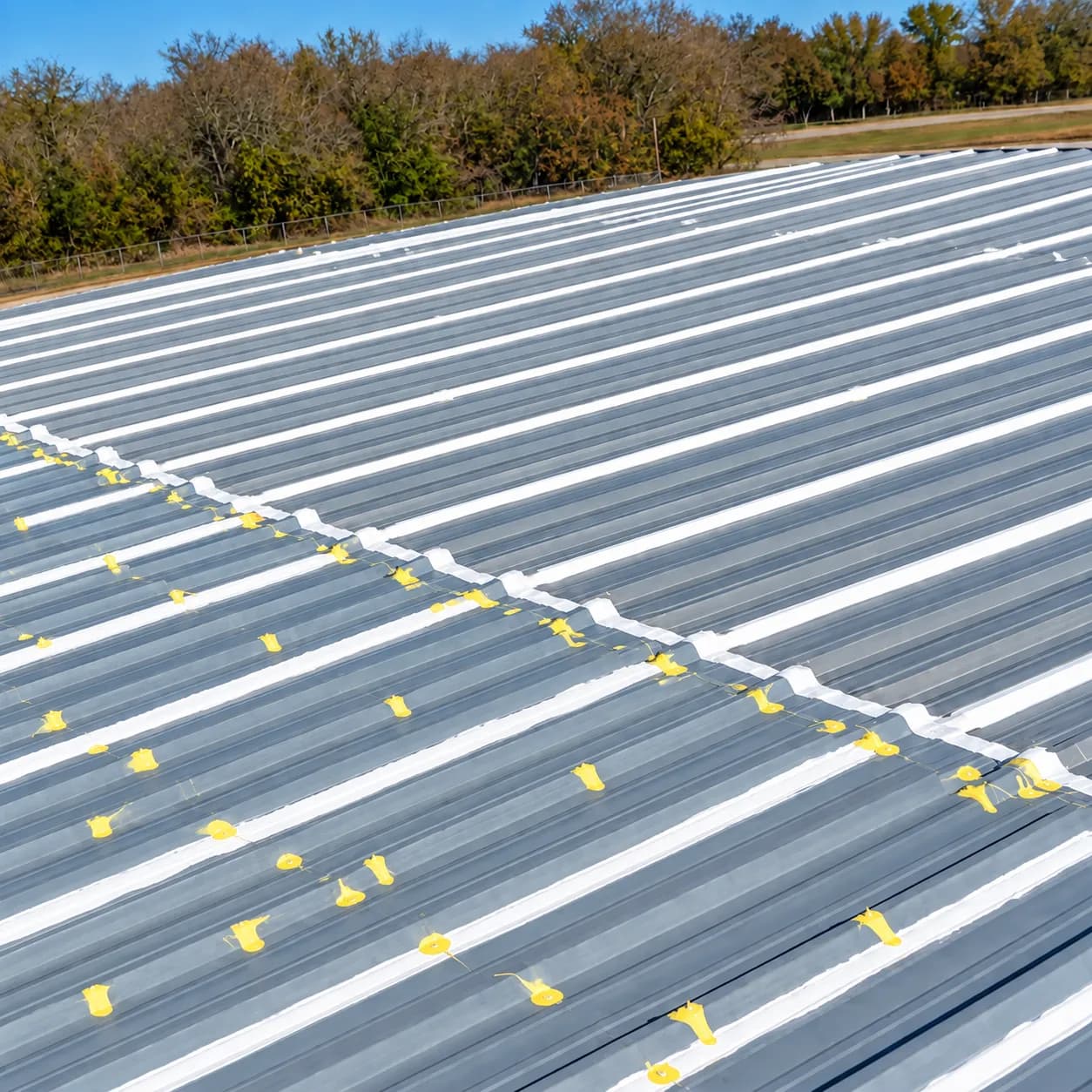

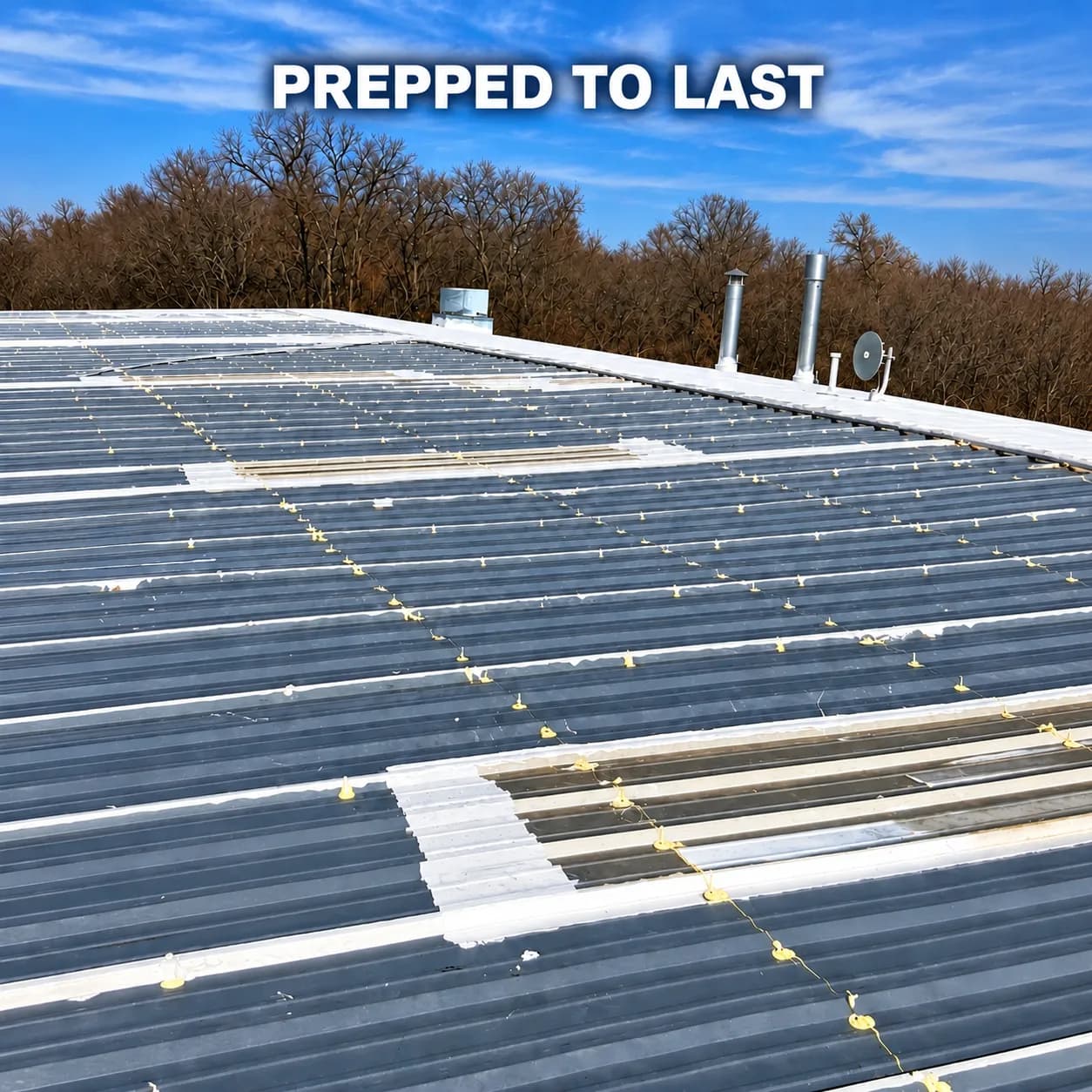

fully prepared
By the time the spray crew enters the scene, the most important work has already been completed by hand. Loose or backed-out fasteners have been replaced, heat gaps closed, rusted areas treated, and every panel seam, lap, transition, and vulnerable detail carefully reinforced and sealed. Each exposed fastener has also been individually encapsulated with its own protective “Hershey Kiss.”
The R-panel roof is now clean, dry, triple sealed, and fully prepared to receive the final protective coating as one continuous system.
About Pillar Roofing

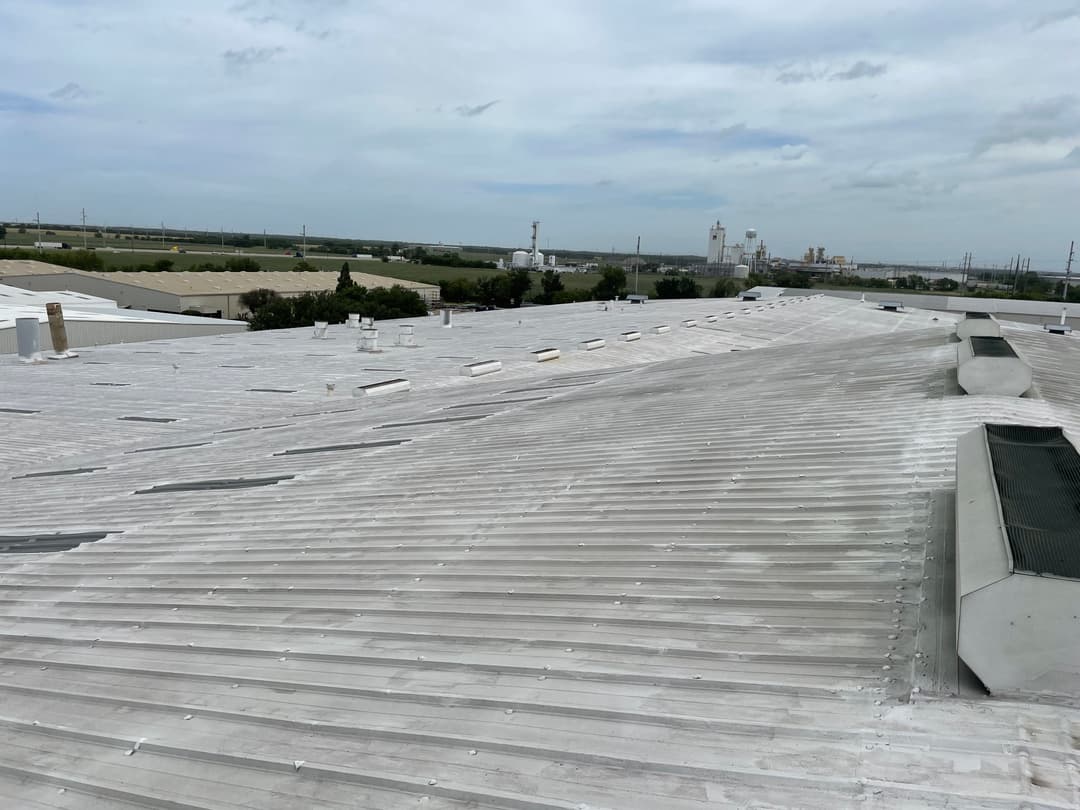

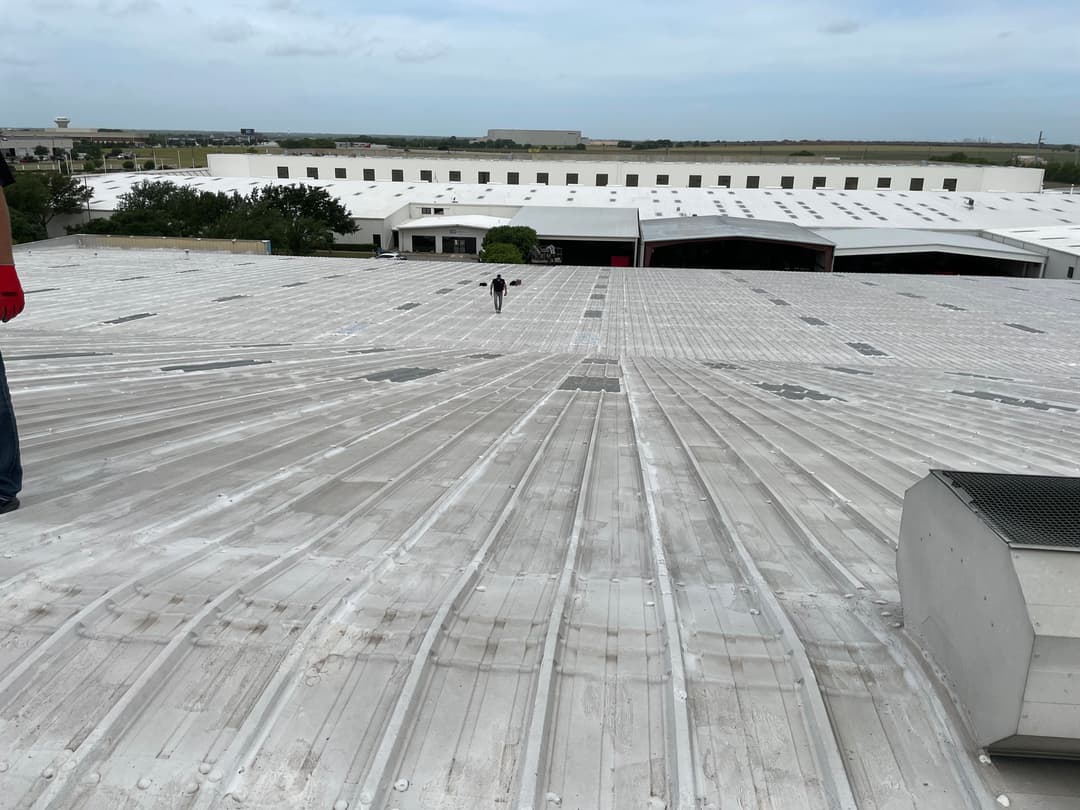

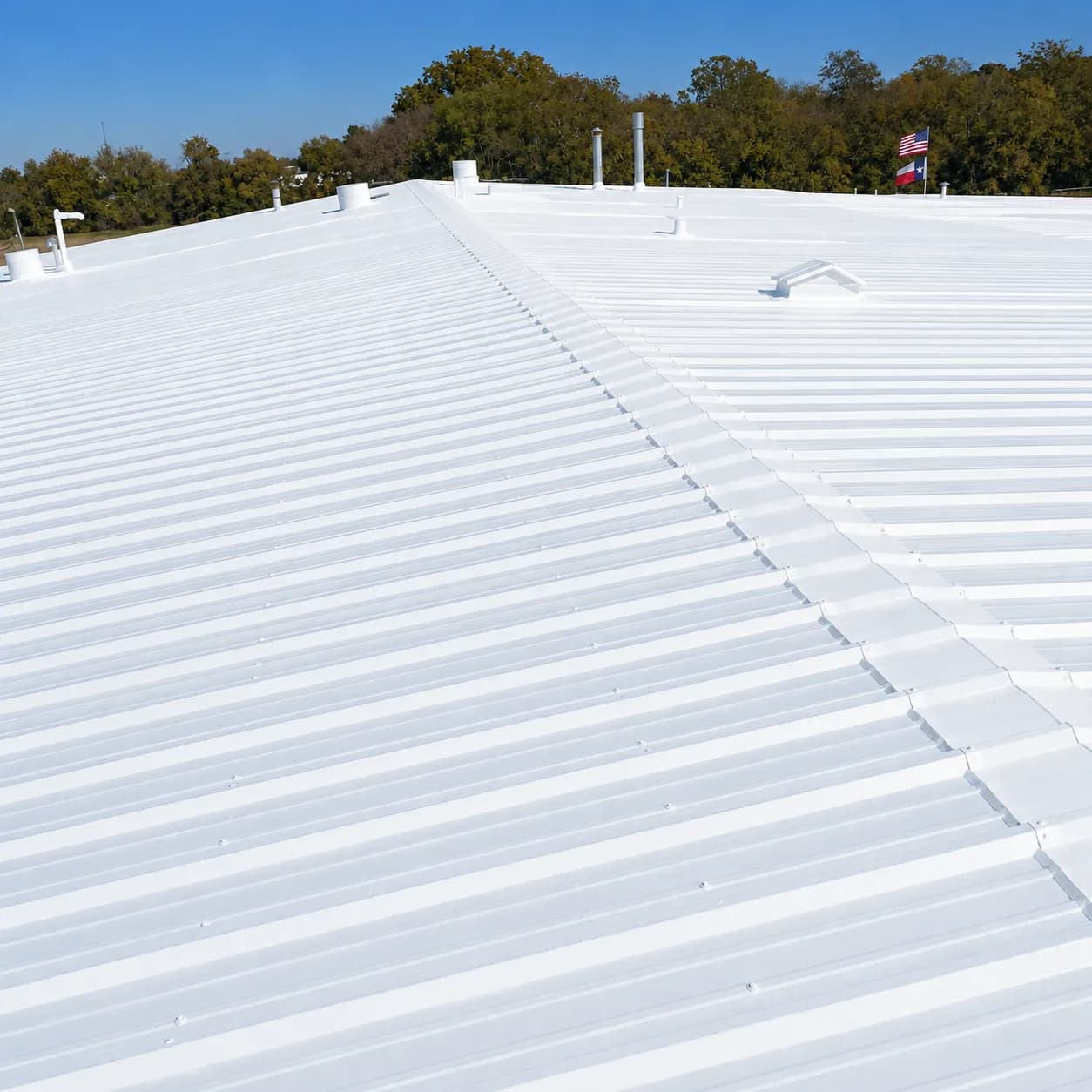

The Final Shield
Once every seam, fastener and roof fixture has been repaired, rust-treated and triple sealed, the restoration is completed with a full spray application. Depending on the roof system and project conditions, we apply either Hydro Shield, our water-based coating, or DynaShield, our oil-based coating. Both create a seamless protective shield with a clean, finished sheen across the entire roof.
For certain applications, a specialized hardening additive can be introduced, allowing the coating to cure into an exceptionally durable, crystal-hard acrylic finish that provides another level of protection against North Texas weather.
About Pillar Roofing

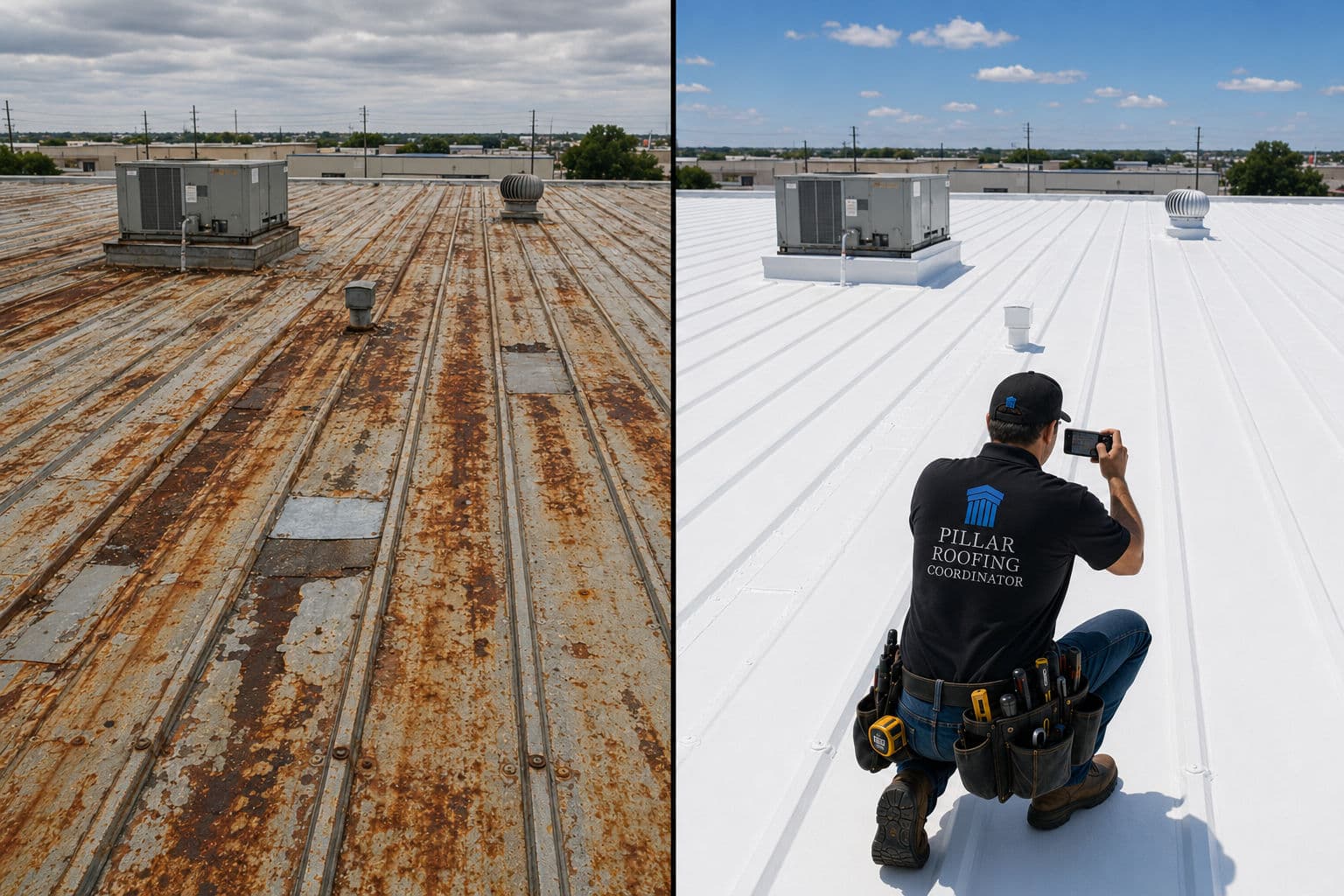

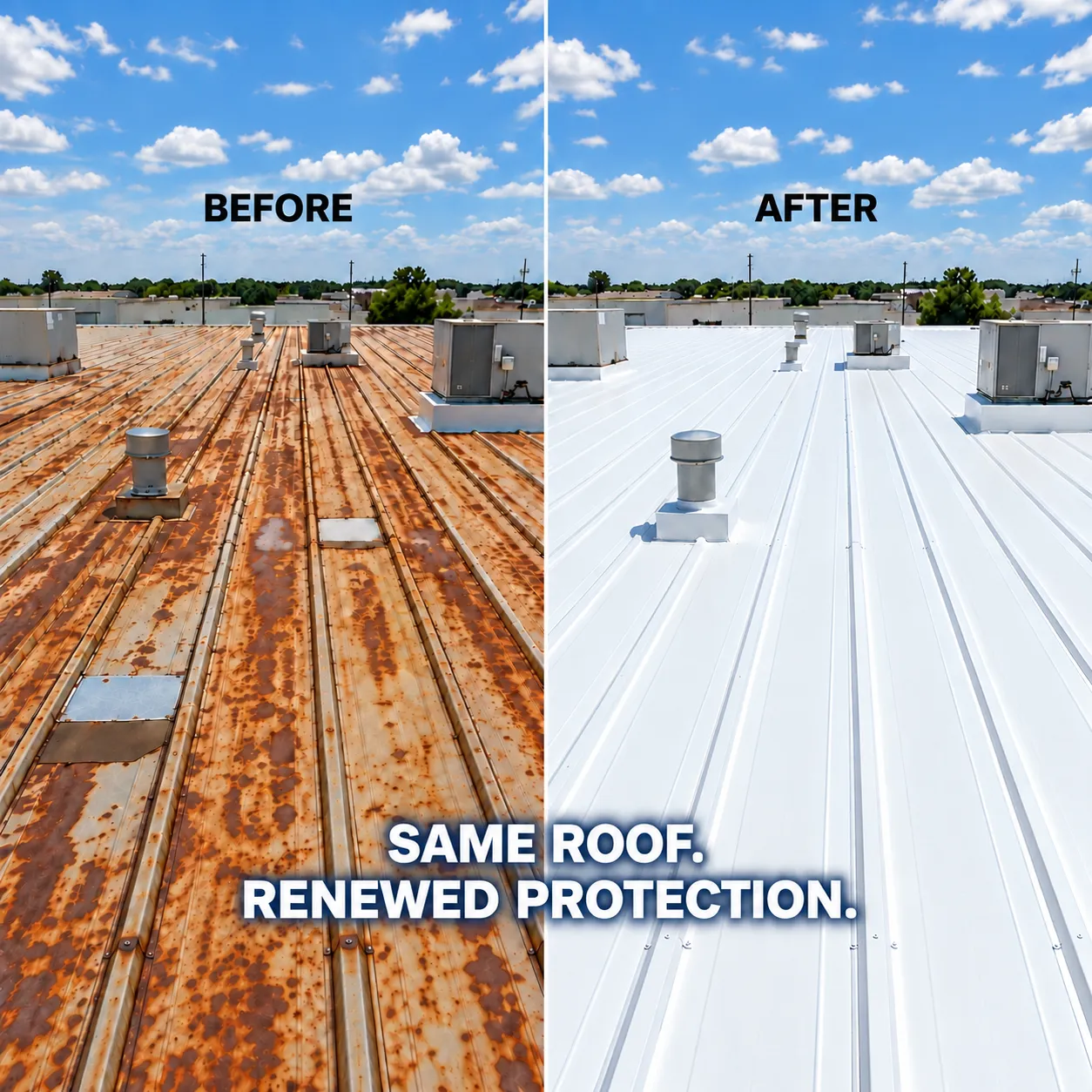

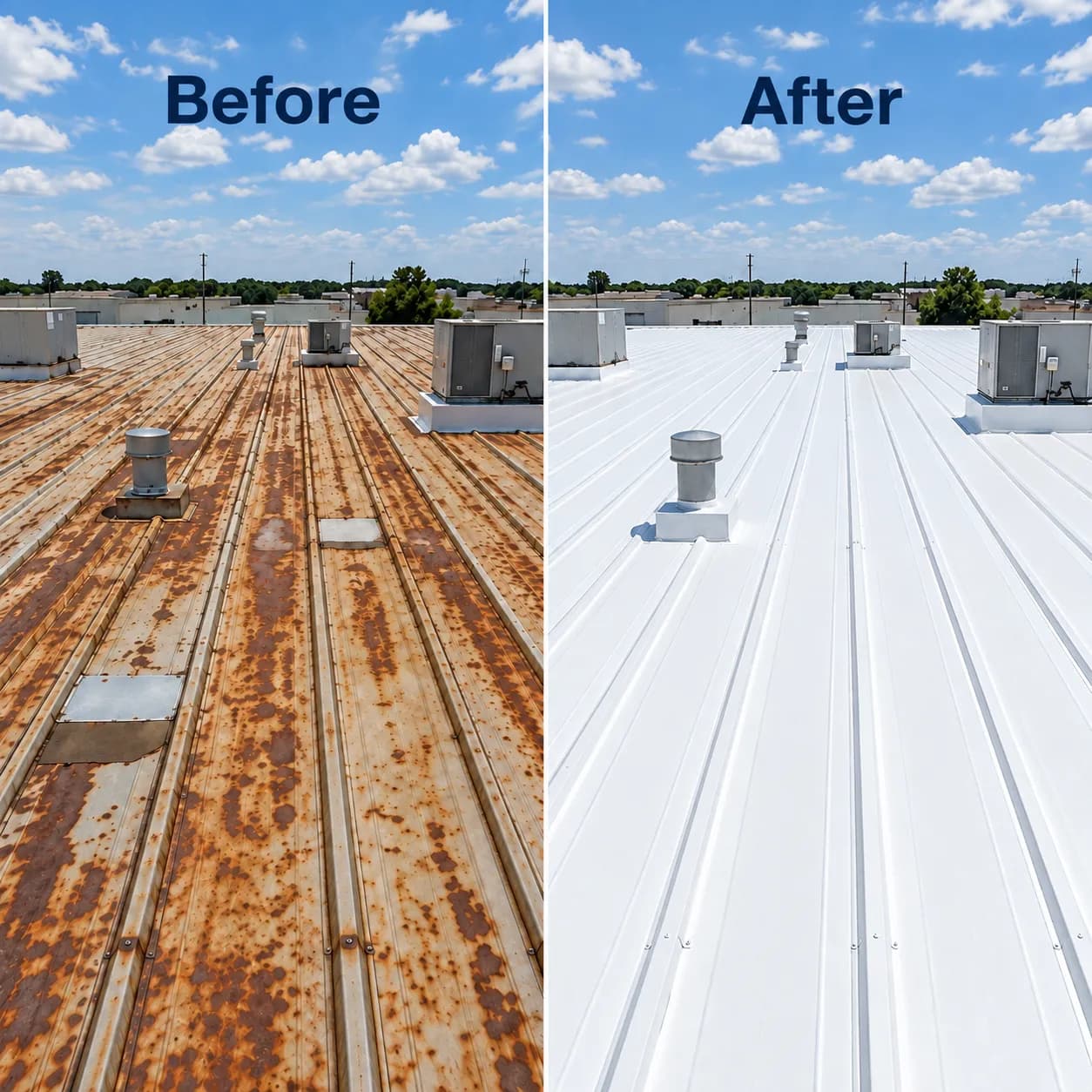

Before & After Shots
Every Install, Documented
Once the ARC Coating Process has been completed, your Pillar Roofing Coordinator will generate the final invoice for the project.
Before & After photos are included, creating a permanent record for your building’s maintenance files—and giving owners and property managers confidence that the work was completed properly.
About Pillar Roofing

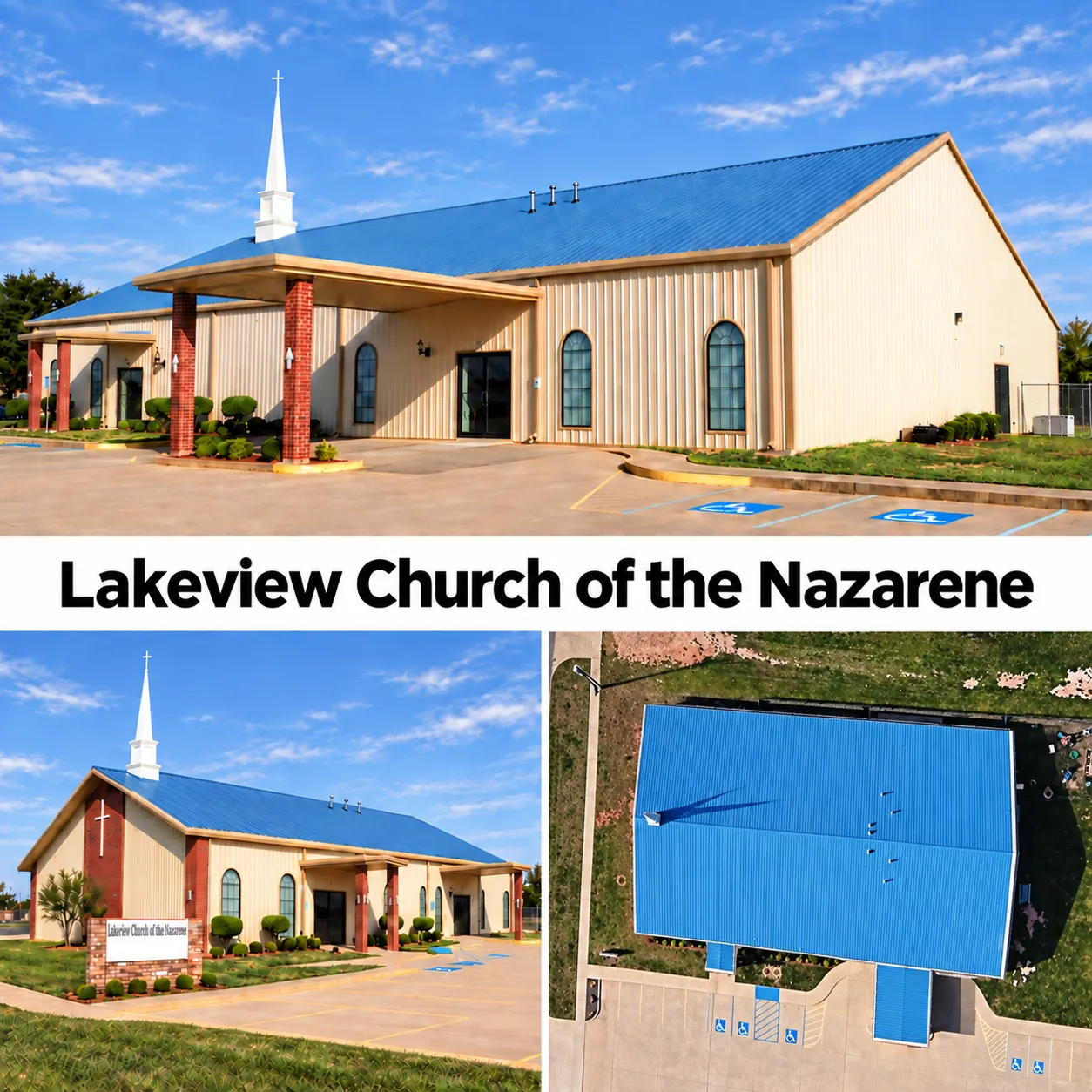

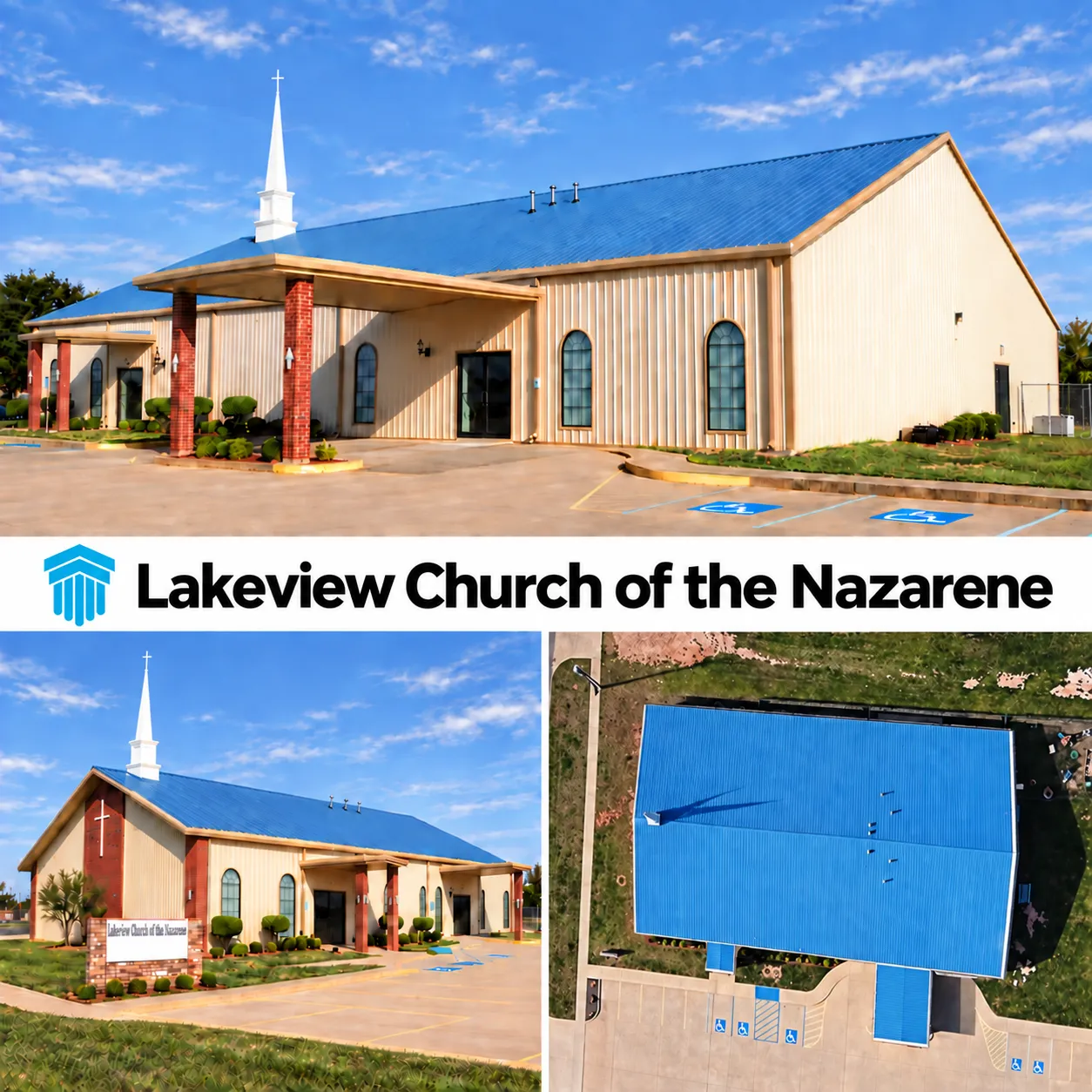

Lasting Protection in bold blue
In 2013, a devastating hailstorm tore through Wichita Falls, damaging roofs across at least half the city. Lakeview Church of the Nazarene was directly in its path. The existing roof was badly damaged and leaking, leaving the congregation in urgent need of a complete replacement. Pillar Roofing earned the project and installed a new metal roofing system designed to provide lasting protection against North Texas weather.
The large roof and tall steeple created challenging installation details, and the work was completed as colder weather began moving into North Texas. Despite the conditions, the finished roof came together beautifully, and the church was extremely pleased with the result. We may never know exactly what inspired the congregation to select that bold blue color—but more than a decade later, it still makes the church one of the most recognizable buildings in the area.
Metal Panel Roof Restoration That Extends Life
We stop leaks, seal weak points, and restore performance to help you avoid early replacement.
Metal Panel Roof Restoration
At Pillar Roofing, we help commercial property owners get more life out of their metal roofing systems with professional metal roof restoration. If your roof is leaking, showing rust, pulling at seams, or just looking worn from years of Texas sun and storms, restoration may be a smart alternative to a full replacement. Our goal is simple: stop active problems, strengthen the roof, and protect your building with a system that performs better and lasts longer.
Metal roof restoration is designed to repair and renew an existing commercial metal roof. Instead of tearing off the whole system right away, we restore the roof by addressing trouble spots, improving waterproofing, and applying protective coatings where needed. This approach can help reduce downtime, lower project costs, and extend the service life of your current roof. For many building owners, it is a practical way to protect their investment without the disruption of a full reroof.
What Metal Panel Roof Restoration Includes
Our restoration process starts with a detailed roof inspection. We examine the full condition of the roof system, including metal panels, fasteners, seams, flashing, penetrations, drainage areas, and signs of movement or weather damage. We look for common commercial metal roof issues such as:
Leaks around seams, laps, and roof penetrations
Rust and corrosion on panels or exposed metal components
Loose or backed-out fasteners
Worn sealants and failing flashing details
Ponding water around low spots or drainage areas
Oxidation caused by long-term exposure to sun and moisture
Storm damage from wind, hail, or flying debris
Panel separation caused by thermal movement and age
Once we understand the roof’s condition, we build a restoration plan based on what the system needs. Every commercial roof is different, so we do not take a one-size-fits-all approach. We focus on repairs that solve current issues and help prevent future problems.
Typical Steps in Our Restoration Process
Inspection and evaluation: We identify leaks, weak areas, and signs of age or damage. We also determine whether the roof is a good candidate for restoration or if replacement would be the better long-term option.
Surface preparation: Proper prep is critical. We clean the roof to remove dirt, chalking, debris, mildew, and loose material so repairs and coatings can bond correctly.
Metal roof repairs: We tighten or replace fasteners, seal exposed areas, repair flashing, address panel gaps, and correct problem details around curbs, vents, skylights, and penetrations.
Rust treatment: If oxidation is present, we treat affected areas and remove as much corrosion as possible before applying compatible repair materials and protective products.
Seam and detail reinforcement: Seams, fastener lines, transitions, and penetrations often need extra protection. We reinforce these vulnerable points to improve waterproofing performance.
Protective roof coating application: When appropriate, we apply a roof coating system designed for commercial metal roofs. This helps create a more durable, weather-resistant surface and can improve reflectivity.
Final review: We check the completed work carefully to make sure the restored roof is sealed, protected, and ready to handle the elements.
Benefits of Metal Panel Roof Restoration
A properly restored metal roof can offer major value for commercial properties. Restoration is often chosen because it helps building owners solve roofing problems while avoiding the expense and disruption of a full replacement. Key benefits include:
Extended roof life: Restoration can add useful years to an aging metal roof when the system is still structurally sound.
Lower cost than replacement: In many cases, restoring a metal roof is more budget-friendly than a complete tear-off and replacement.
Less business disruption: Since restoration usually involves less demolition, commercial operations can often continue with fewer interruptions.
Improved leak protection: Repairs and reinforced seams help reduce water intrusion and protect the building interior.
Better energy performance: Reflective roof coatings can help lower heat absorption, which may support more efficient indoor comfort and energy savings.
Improved appearance: Restoration can refresh the look of an older roof and help the property present better overall.
Ongoing asset protection: A restored roof helps protect inventory, equipment, tenants, employees, and daily operations.

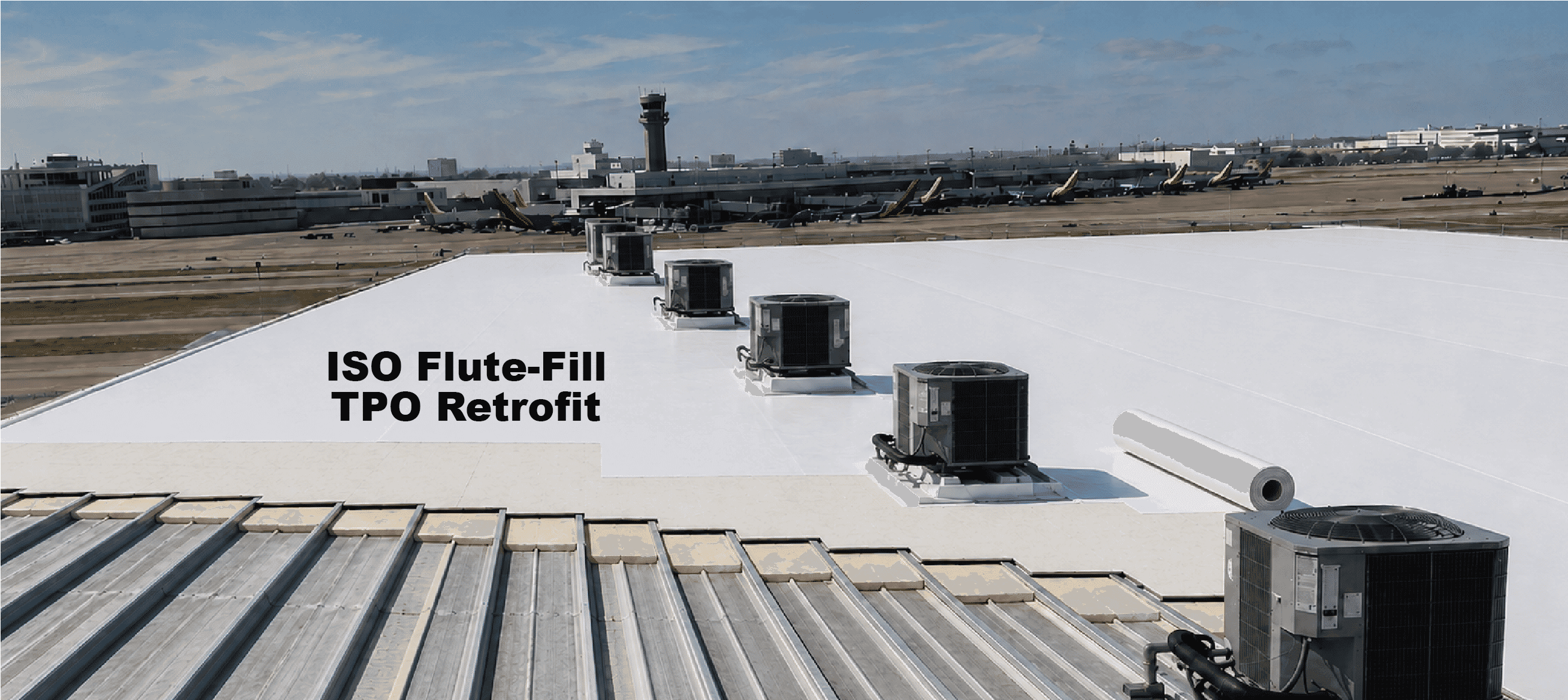

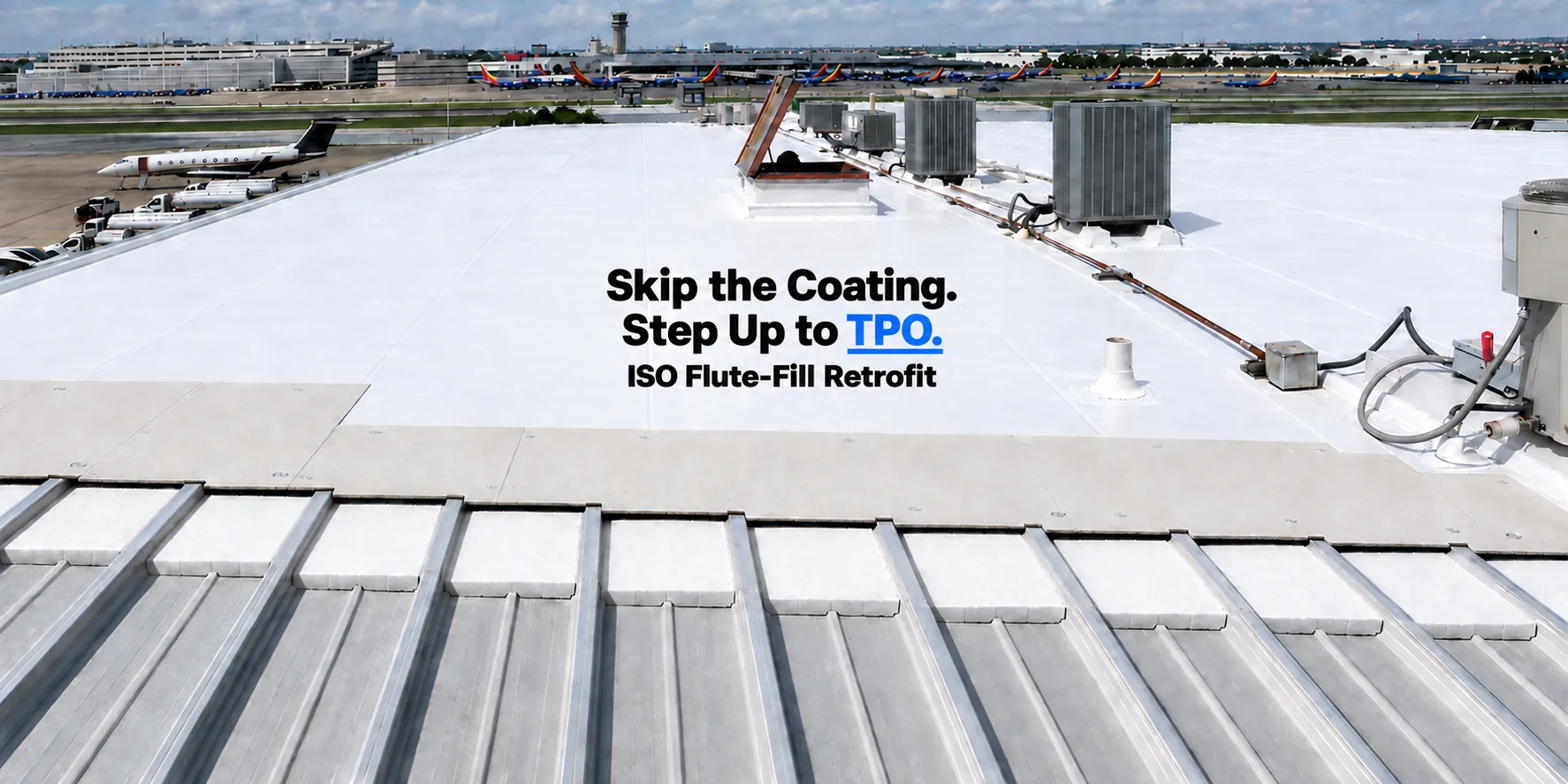

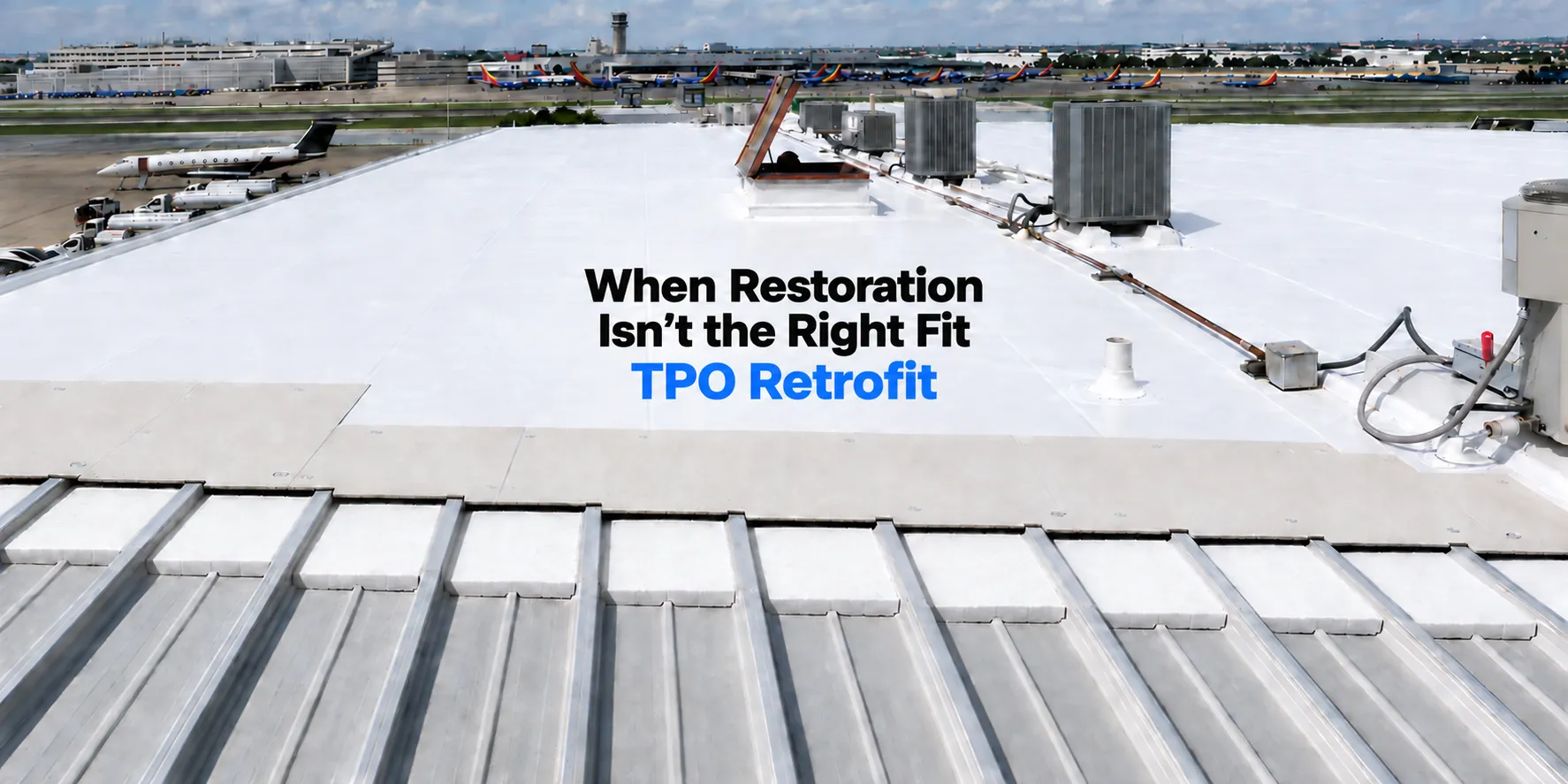

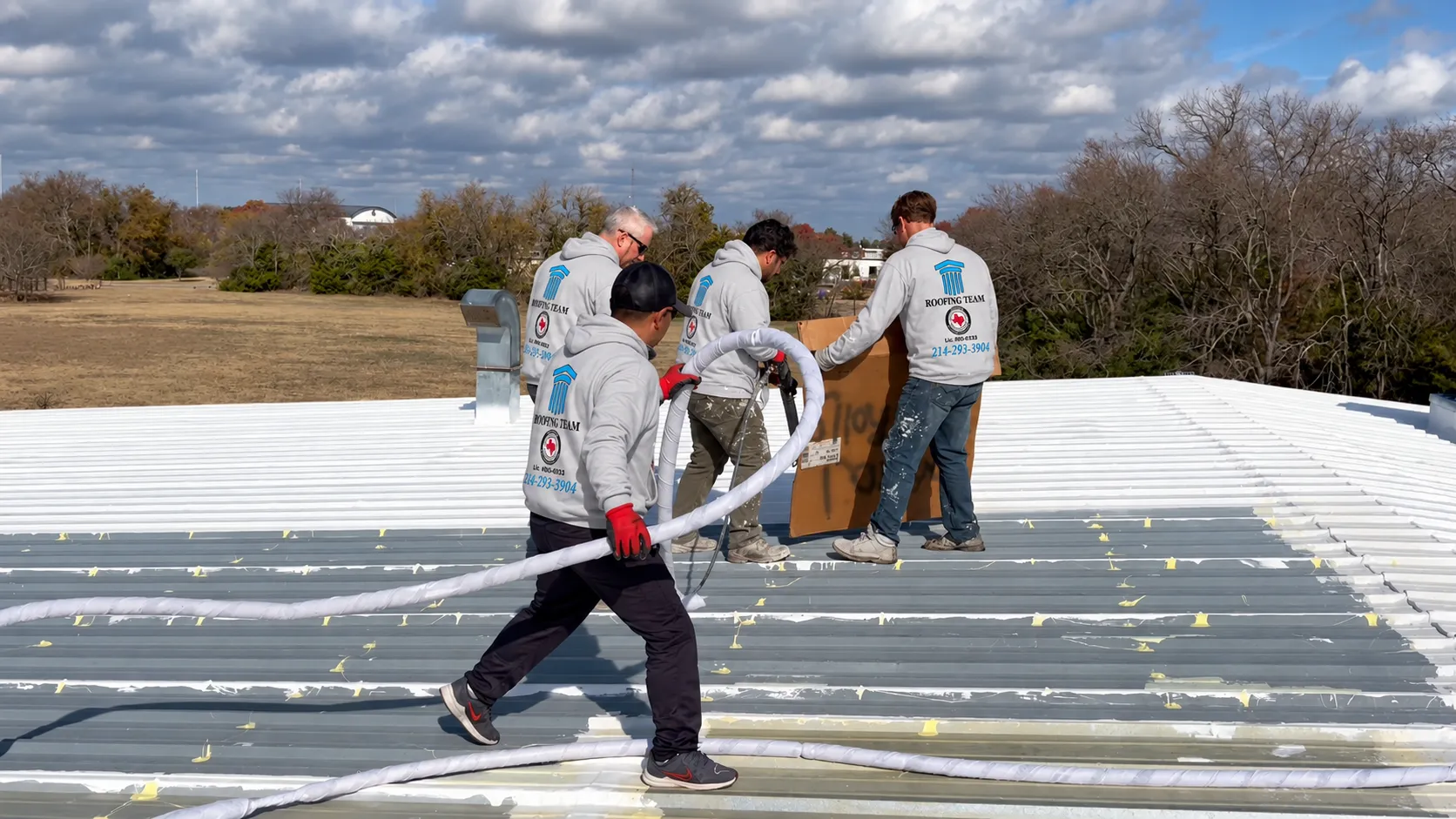

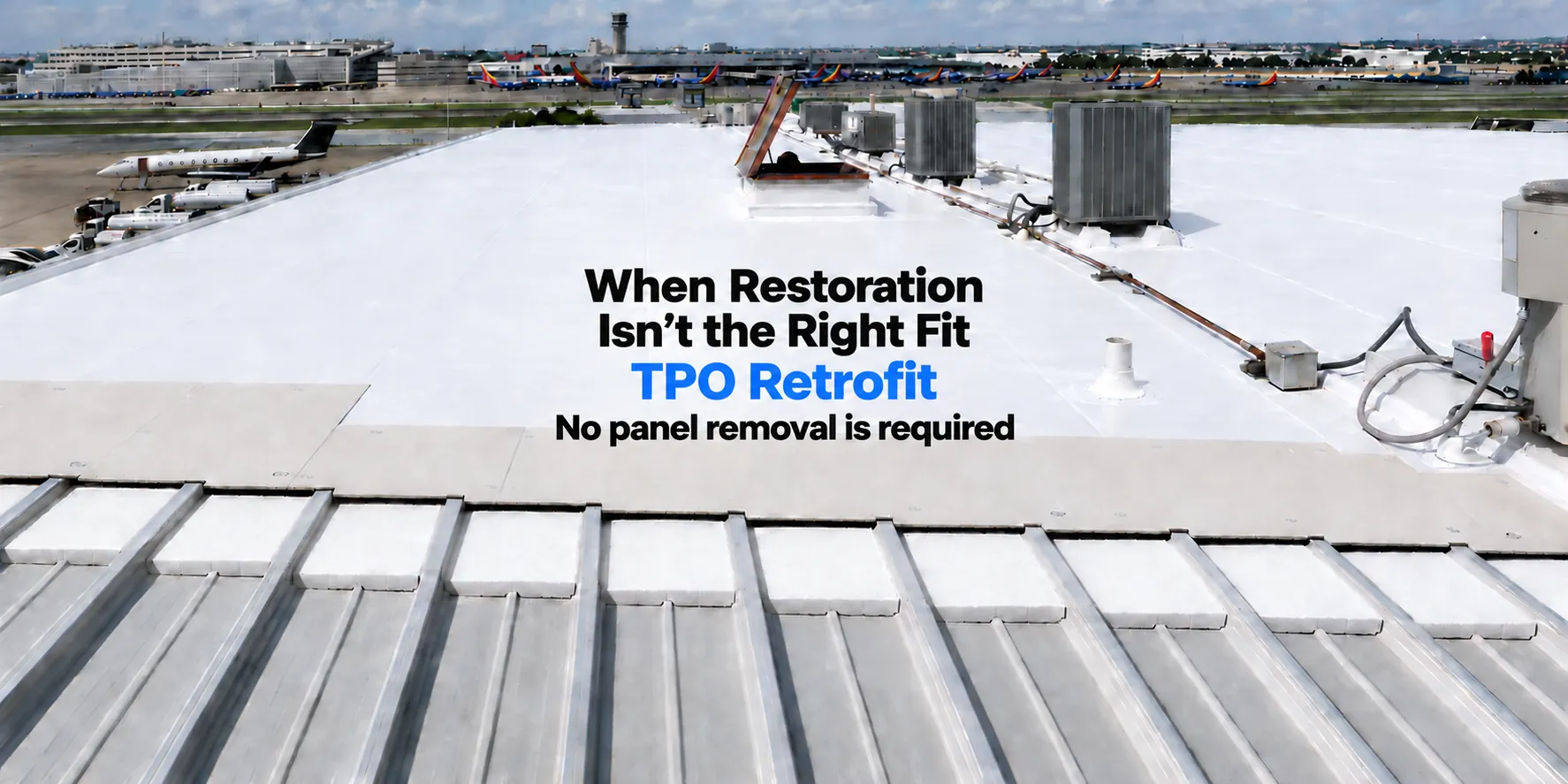

High-Performance TPO Retrofit Systems
Our advanced Metal Roof Restoration service offers a highly efficient, cost-effective alternative to complete roof replacement: the TPO Retrofit over R-Panel Metal Roof with Custom Flute Fill Insulation. This engineering-focused method allows your existing R-panel roof to remain completely in place, avoiding costly business disruptions. The process begins with custom-cut flute fill insulation designed to fill the cavities between the metal ribs exactly, eliminating air gaps and maximizing thermal performance. This foundation is overlaid with rigid Polyiso insulation boards and an optional premium cover board (such as DensDeck®) to provide elite impact protection before being sealed with a durable, mechanically fastened TPO membrane.
Key Benefits of Your Restoration
By layering these high-performance materials directly onto your existing structure, this restoration system turns an aging metal roof into a high-efficiency asset:
Zero Tear-Off Noise & Waste: Because the existing roof stays intact, you completely eliminate expensive tear-off labor fees and avoid sending tons of metal and construction debris to local landfills.
Substantial Energy Savings: The combination of custom flute fill and rigid Polyiso insulation significantly boosts your building's R-value, stabilizing indoor temperatures and slashing utility costs.
Monolithic Weather Protection: The final mechanically fastened TPO membrane creates a seamless, monolithic waterproof barrier that offers exceptional resistance to punctures and severe hail, adding decades of reliable life to your existing commercial property.
When Restoration Makes Sense
Metal roof restoration is often a good fit when the roof has leaks, oxidation, loose fasteners, failing sealants, or weather wear, but the overall roof structure is still in serviceable condition. If your commercial metal roof is aging but not beyond repair, restoration may give you a strong return on investment. It is especially useful for property owners who want to address current issues now and plan more strategically for future capital expenses.
That said, not every roof should be restored. If a roof has severe structural failure, widespread panel damage, or major system deterioration, replacement may be the better choice. We will give you honest guidance based on what we find. At Pillar Roofing, we believe you should have clear information so you can make the right decision for your property.
Built for Texas Commercial Roof Conditions
Here in Richardson, TX and the surrounding area, commercial roofs take a beating from intense UV exposure, heat, heavy rain, hail, and high winds. Metal roofing systems expand and contract with temperature changes, and over time that movement can stress fasteners, seams, and flashing. Our metal roof restoration service is built around these real-world conditions. We focus on durable repairs and proven restoration methods that help your roof stand up to the local climate.
Why Commercial Clients Choose Pillar Roofing
We are a family-owned roofing contractor based in Richardson, TX, and we are committed to doing the job the right way. Commercial clients choose us because we provide honest recommendations, quality workmanship, and responsive service. We are RCAT licensed, and we bring hands-on experience across commercial roofing systems, repairs, inspections, maintenance, and roof replacement. That broader experience helps us spot issues other contractors may miss and recommend solutions that match your building’s needs and budget.
We also understand that roofing decisions affect more than the roof itself. They affect tenants, operations, maintenance planning, and long-term property value. That is why we communicate clearly, show up prepared, and keep the process as smooth as possible from inspection through completion.
Maintenance After Restoration
After a metal roof is restored, ongoing maintenance is one of the best ways to protect the work and extend roof performance. We offer roof maintenance plans to help commercial property owners stay ahead of small issues before they turn into expensive repairs. Regular inspections can catch fastener movement, sealant wear, drainage problems, and early signs of storm damage. Preventive care helps keep your restored roof in better shape for the long term.
Schedule Your Free Estimate
If your commercial metal roof is leaking, rusting, or showing signs of age, let us take a look. We offer free estimates and consultations, and we will give you straightforward recommendations based on the actual condition of your roof. Contact Pillar Roofing today to schedule your metal roof restoration assessment in Richardson, TX or the surrounding area. We are ready to help you restore your roof, protect your property, and avoid bigger roofing problems down the road.
